Description
Overview

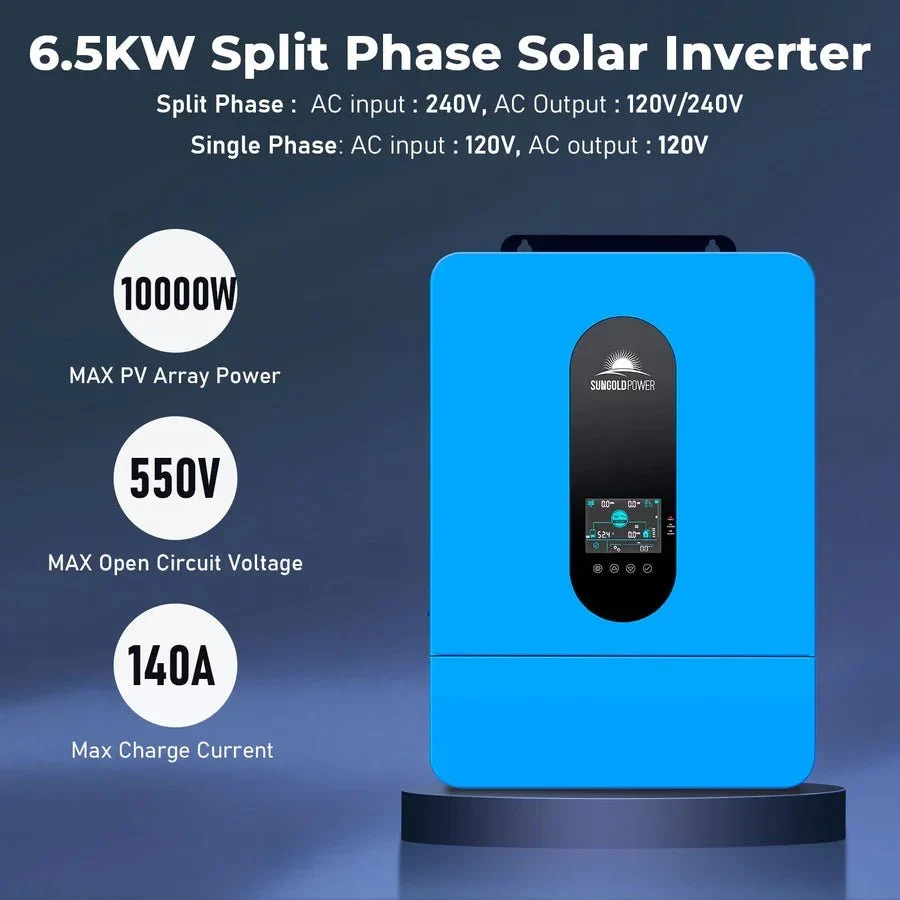

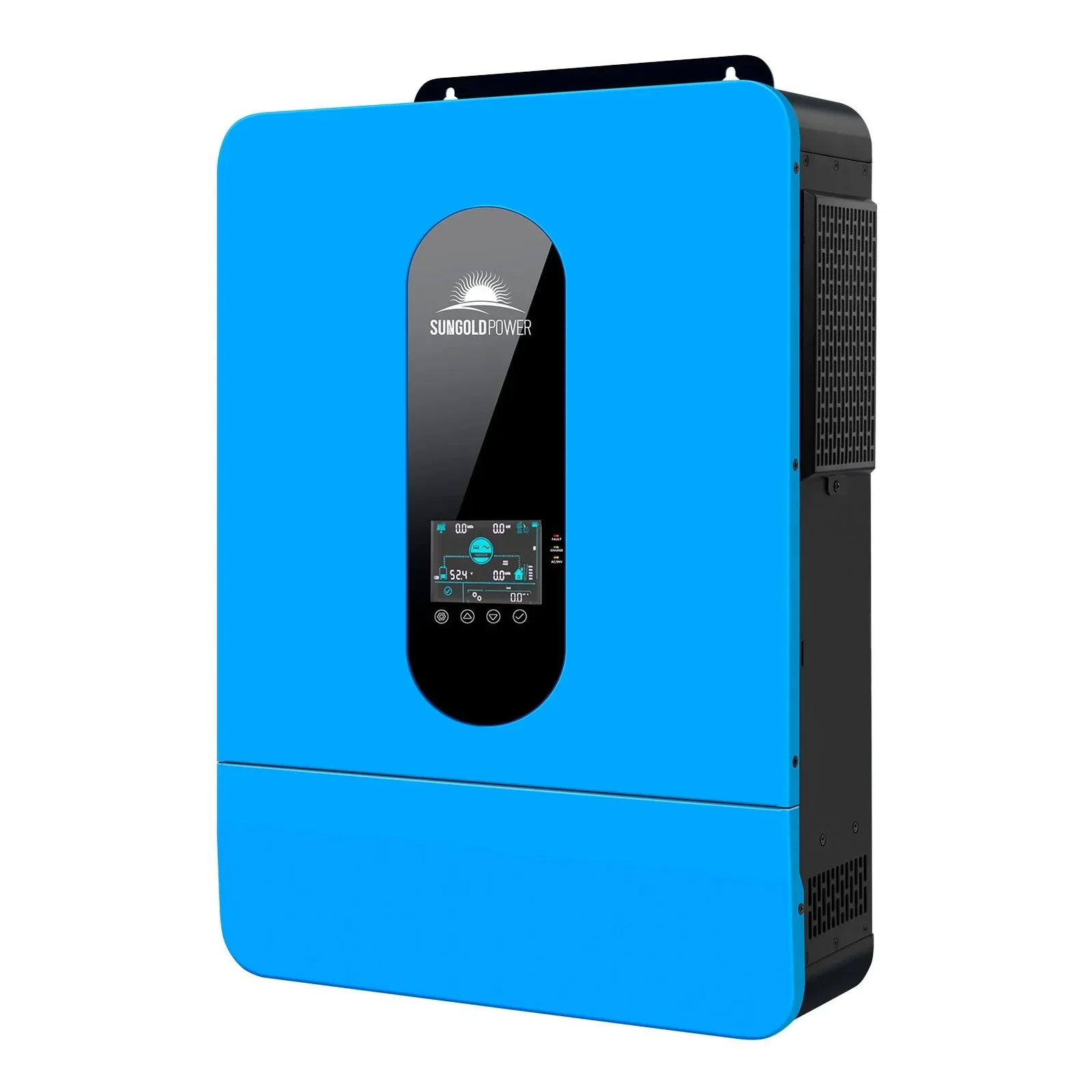

The SunGoldPower SPH6548P combines a 6,500W pure sine wave inverter with two solar MPPT trackers and a grid or generator charger. It outputs 120/240VAC split phase and switches over in about 10 ms.

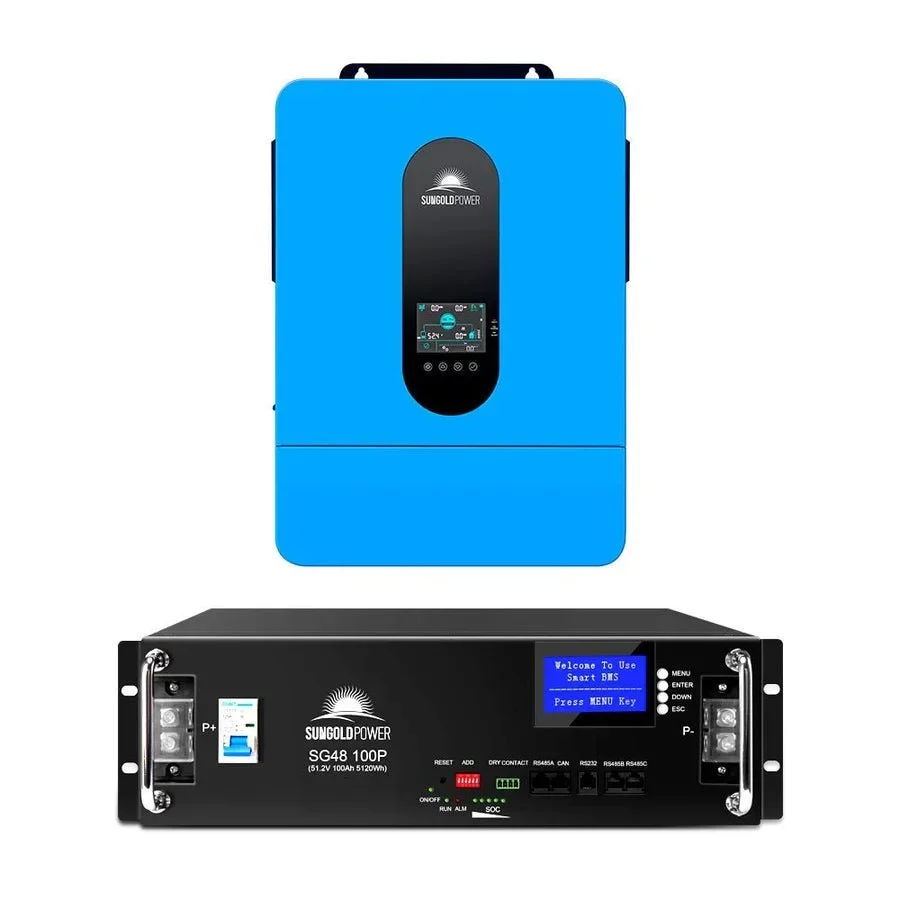

Run up to 6 units in parallel for more power. This listing is available as a single inverter, a pair, or with a SunGoldPower 48V 100Ah server rack battery.
Who it’s for
- Off-grid homes and cabins.
- Backup systems that combine solar, grid and generator.
- Builders who may add more inverters later.
Key benefits
- Split phase: 120/240VAC for home circuits.
- Two MPPT trackers: 5,000W + 5,000W of PV input.
- Strong surge: 13,000VA peak.
- Flexible charging: up to 80A from grid or generator, 140A combined.
- Scalable: up to 6 units in parallel.
Specifications
| Rated output | 6,500W |
|---|---|
| Peak power | 13,000VA |
| Output voltage | 120/240VAC, 50/60Hz |
| Battery | 48V; lithium-ion, lead-acid or user-defined (40 to 60V) |
| MPPT trackers | 2 |
| Max PV input | 5,000W + 5,000W |
| Max PV open-circuit voltage | 550V DC per input |
| MPPT voltage range | 150 to 450V DC |
| Max grid/generator charge current | 80A |
| Max combined charge current | 140A |
| Switching time | 10 ms typical |

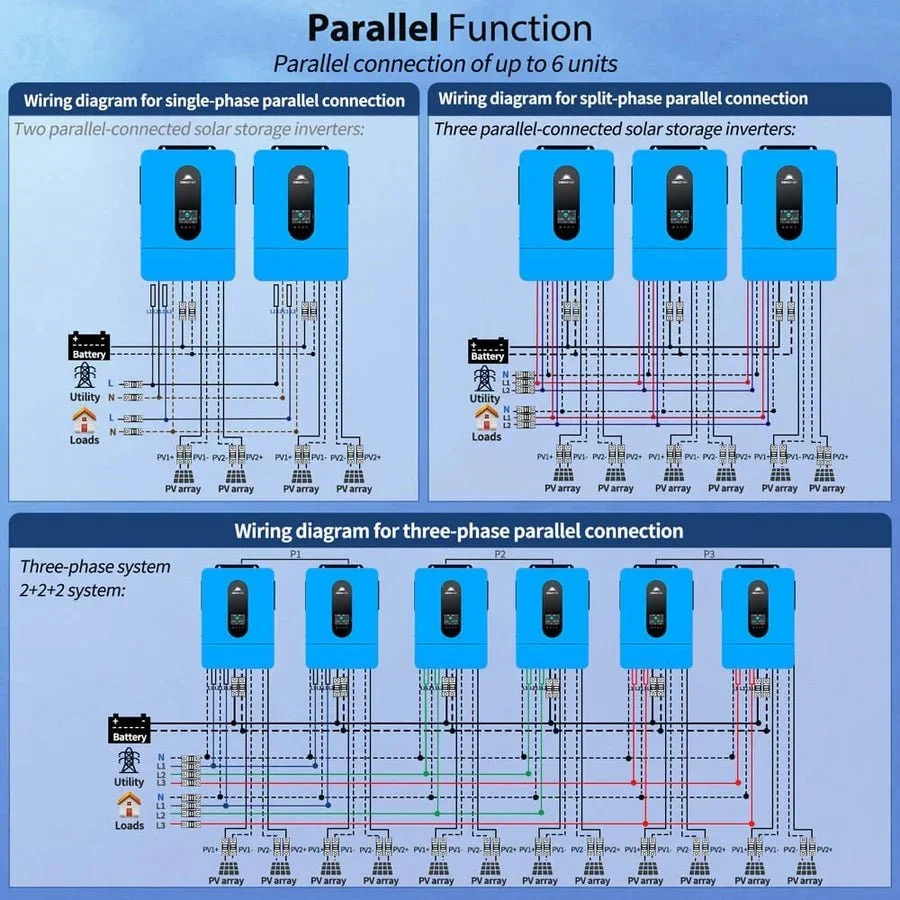

| Parallel | Up to 6 units |
| Battery inverter efficiency | 93% max |
| Communication | RS485, CAN, USB, dry contact; Wi-Fi/GPRS optional |
| Enclosure | IP20, indoor use only |

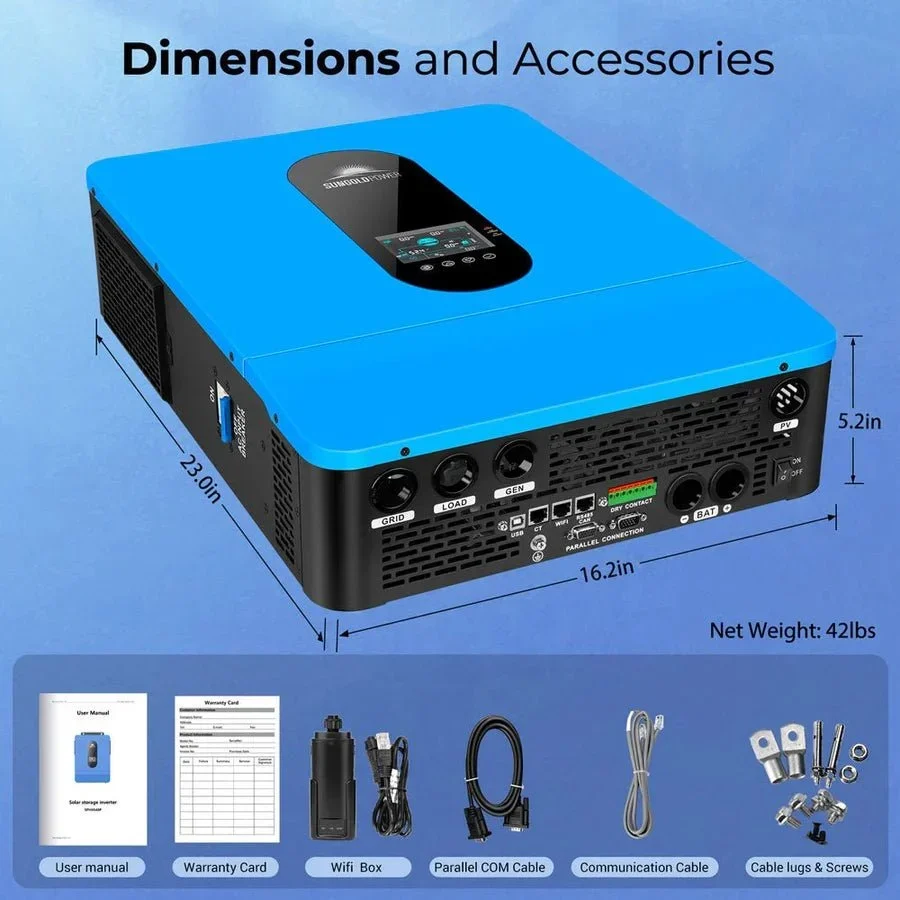

| Dimensions | 23 x 16.2 x 5.2 in |
| Weight | 42 lb (manufacturer figure) |
FAQ
What are the bundle options?
One inverter, two inverters, or one inverter with a SunGoldPower 48V 100Ah server rack battery.
Is Wi-Fi included?
Wi-Fi/GPRS monitoring is an optional external module.
Warranty
Manufacturer’s warranty: 2 years. Original purchaser only. Source: SunGoldPower product page.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
