SunGoldPower 8KW 48V Split Phase Solar Inverter

Description

Overview

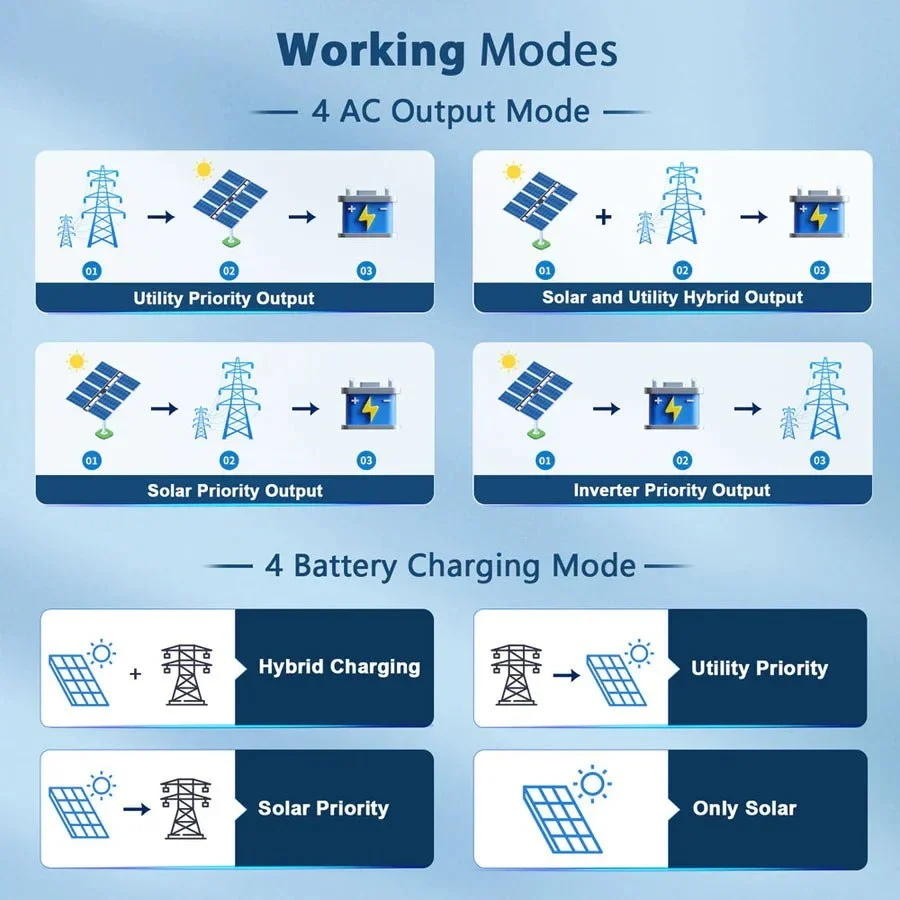

The SunGoldPower 8kW inverter combines solar charging, battery charging and a 8,000W split-phase pure sine wave inverter. Solar charges the battery and powers your loads; when solar and battery run out, the grid or a generator takes over and recharges the battery.

It can start motors up to 5 HP, runs up to 6 units in parallel, and lets you check inverter data on your phone over Wi-Fi.

Who it’s for

• Off-grid homes and cabins.
• Backup systems that combine solar, grid and generator.
• Builders who may add more inverters later.

Key benefits

• Split phase: 120/240VAC output for home circuits.
• Strong solar input: two MPPT trackers, up to 11,000W of PV.
• Big charger: up to 180A from solar and 100A from grid or generator.
• Scalable: up to 6 units in parallel.
• Wi-Fi monitoring: see inverter data on your phone.
• Certified: IEC62109-1/-2 and UL1741.

Specifications

Rated output	8,000W
Peak power	16,000W
Output voltage	120/240VAC split phase, 50/60Hz
Motor starting	Up to 5 HP

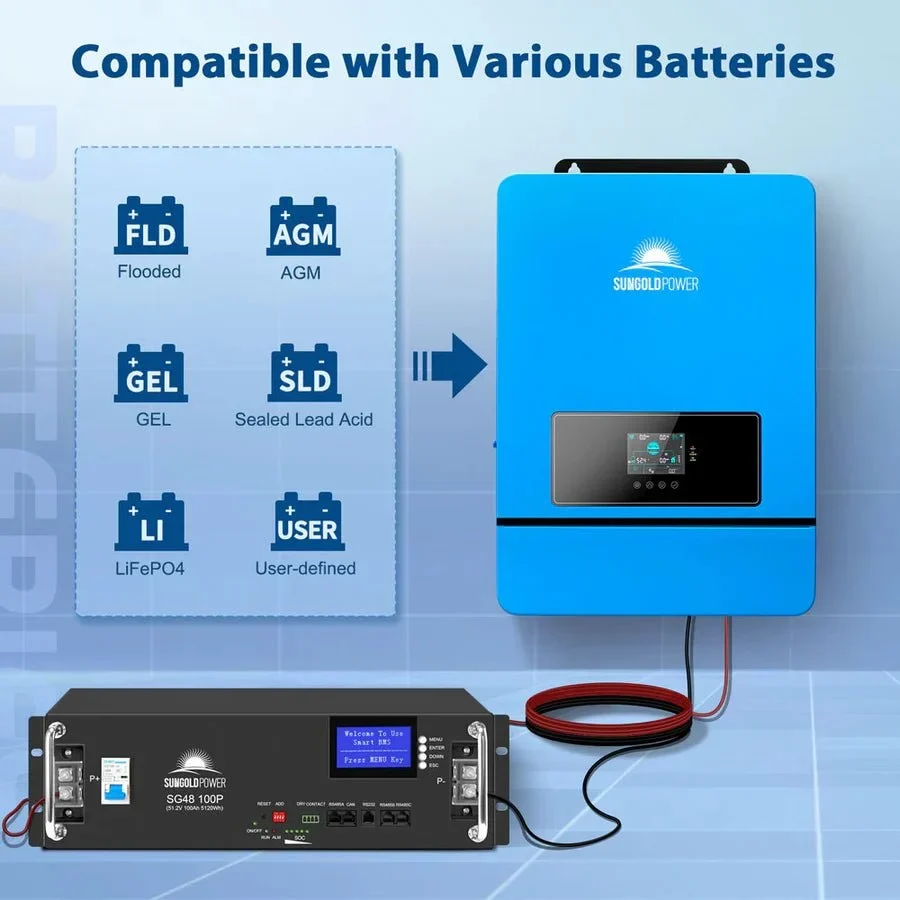

Battery	48V; lithium-ion, lead-acid or user-defined
MPPT trackers	2

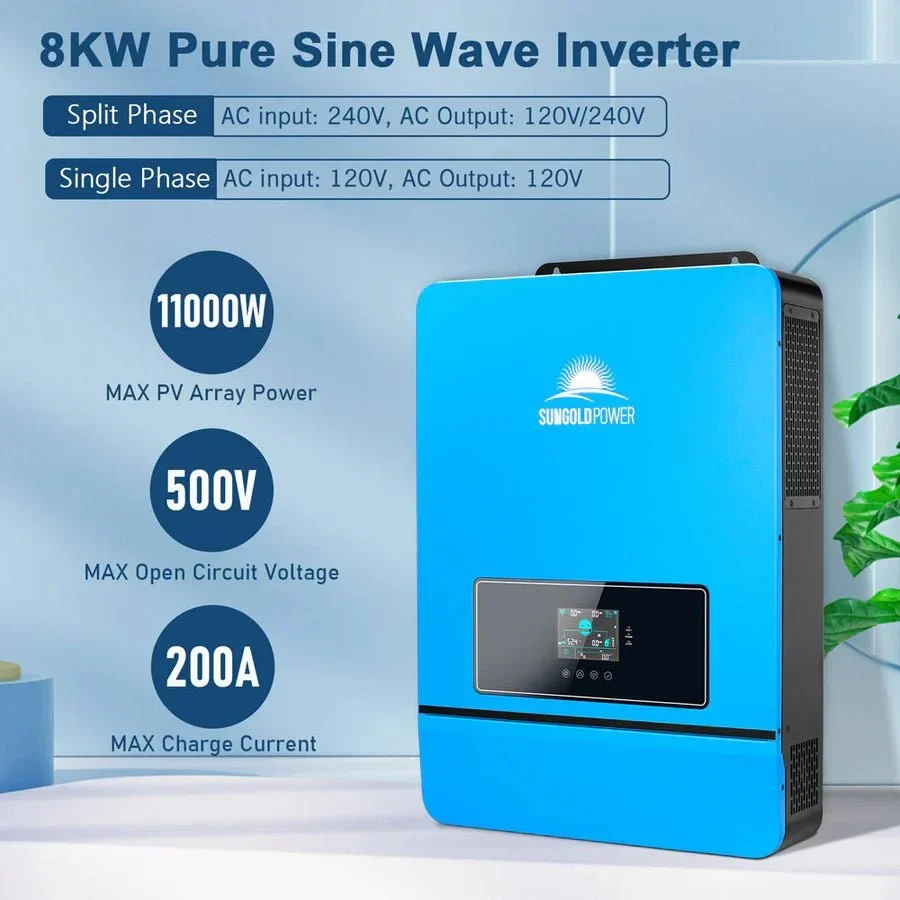

Max PV input	11,000W
Max PV open-circuit voltage	500V DC
MPPT voltage range	125 to 425V DC
Max PV charge current	180A
Max grid/generator charge current	100A
Switching time	10 ms typical

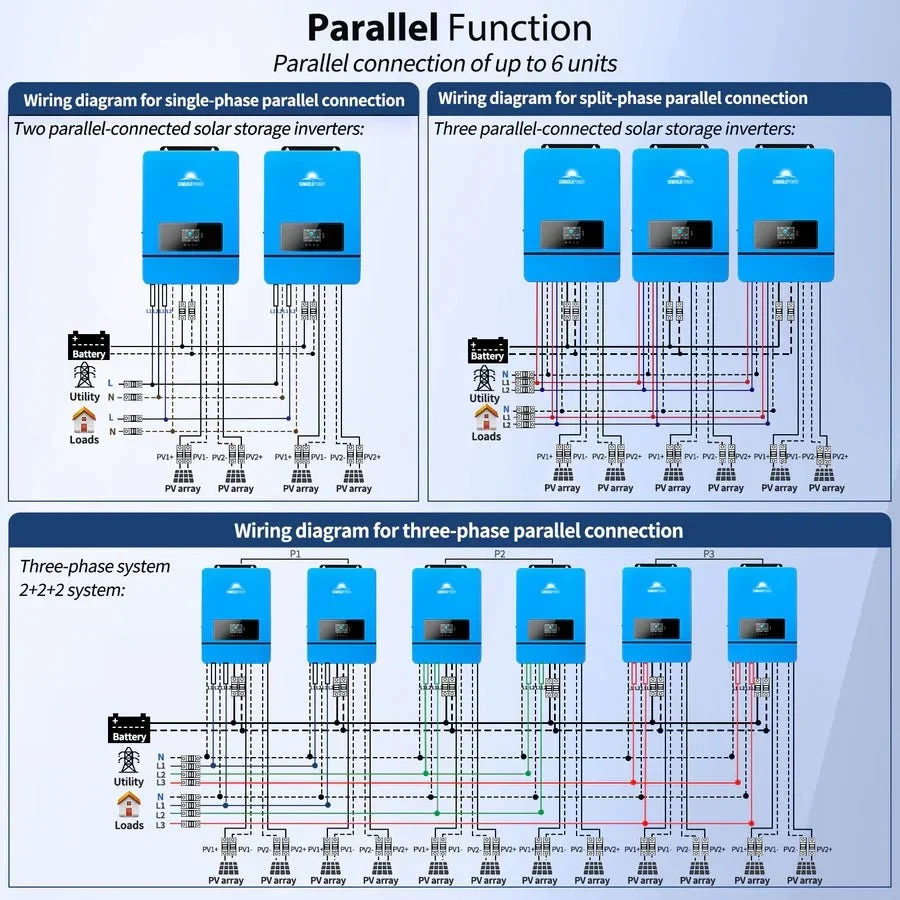

Parallel	Up to 6 units
Battery inverter efficiency	92% max
Enclosure	IP20, indoor use only
Certification	IEC62109-1, IEC62109-2, UL1741
Weight	59.52 lb (manufacturer figure)

FAQ

Can I install it outdoors?

No. It’s rated IP20 for indoor use only.

What happens when solar and battery run out?

The grid or a generator powers your loads and recharges the battery.

Can I add a second unit later?

Yes. Up to 6 units can run in parallel.

Warranty

Manufacturer’s warranty: 2 years. Original purchaser only. Source: SunGoldPower product page.

Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
