Description
Overview

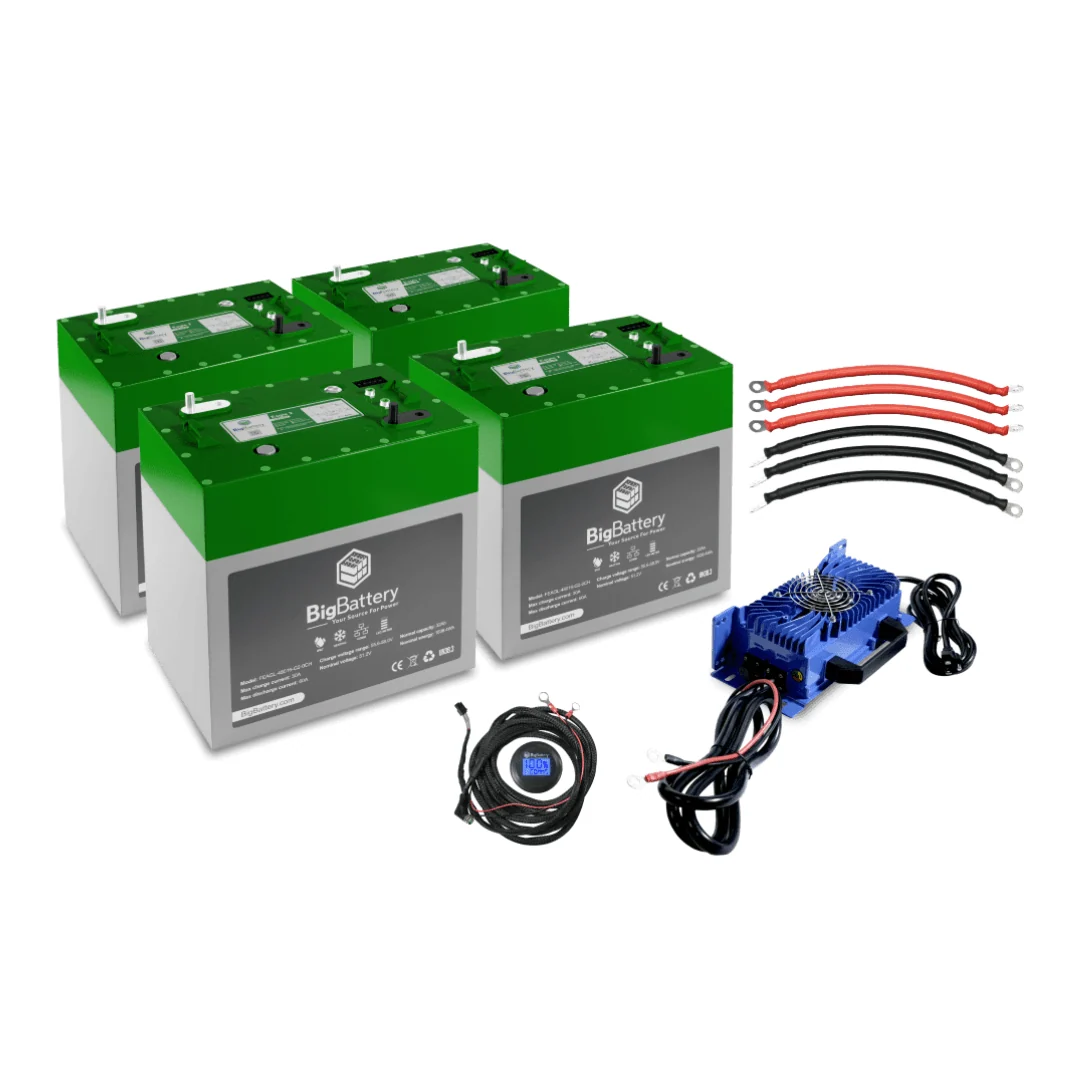

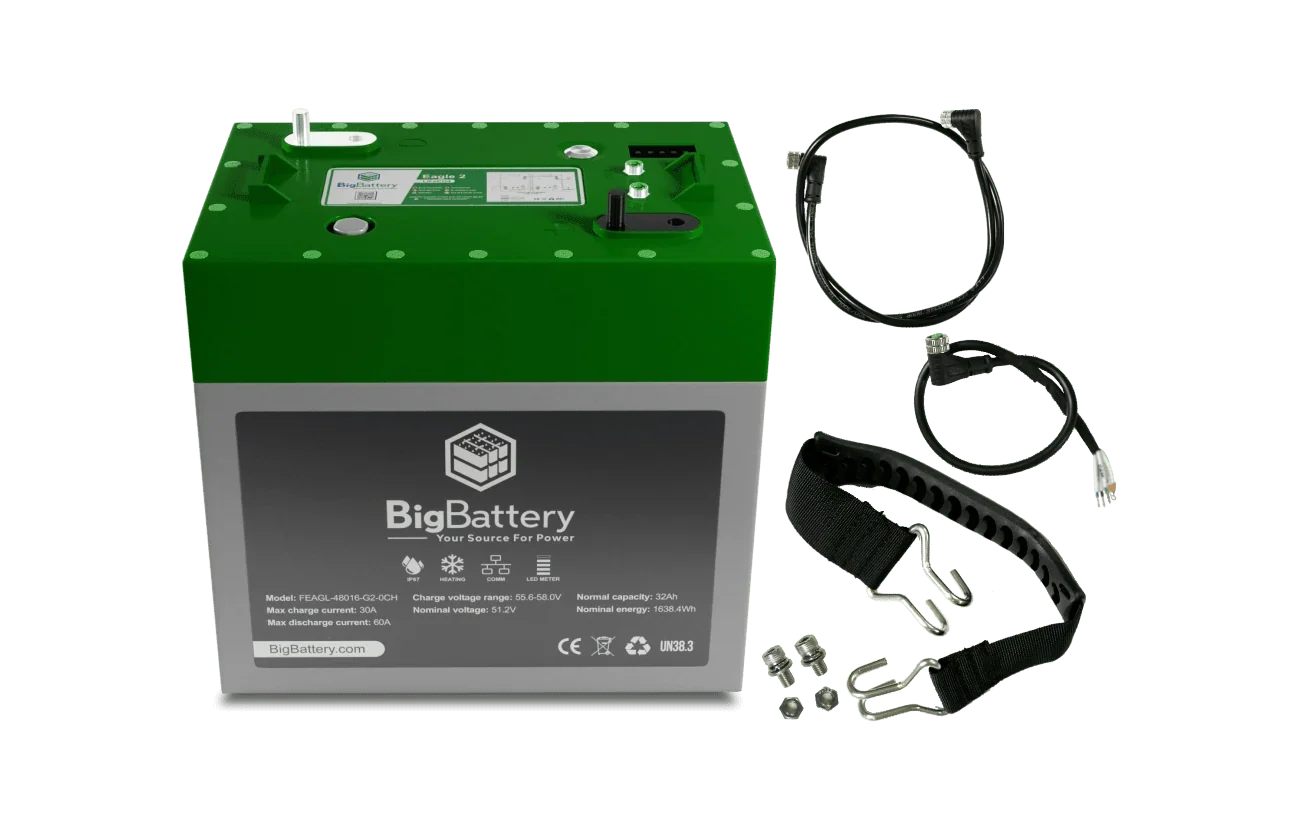

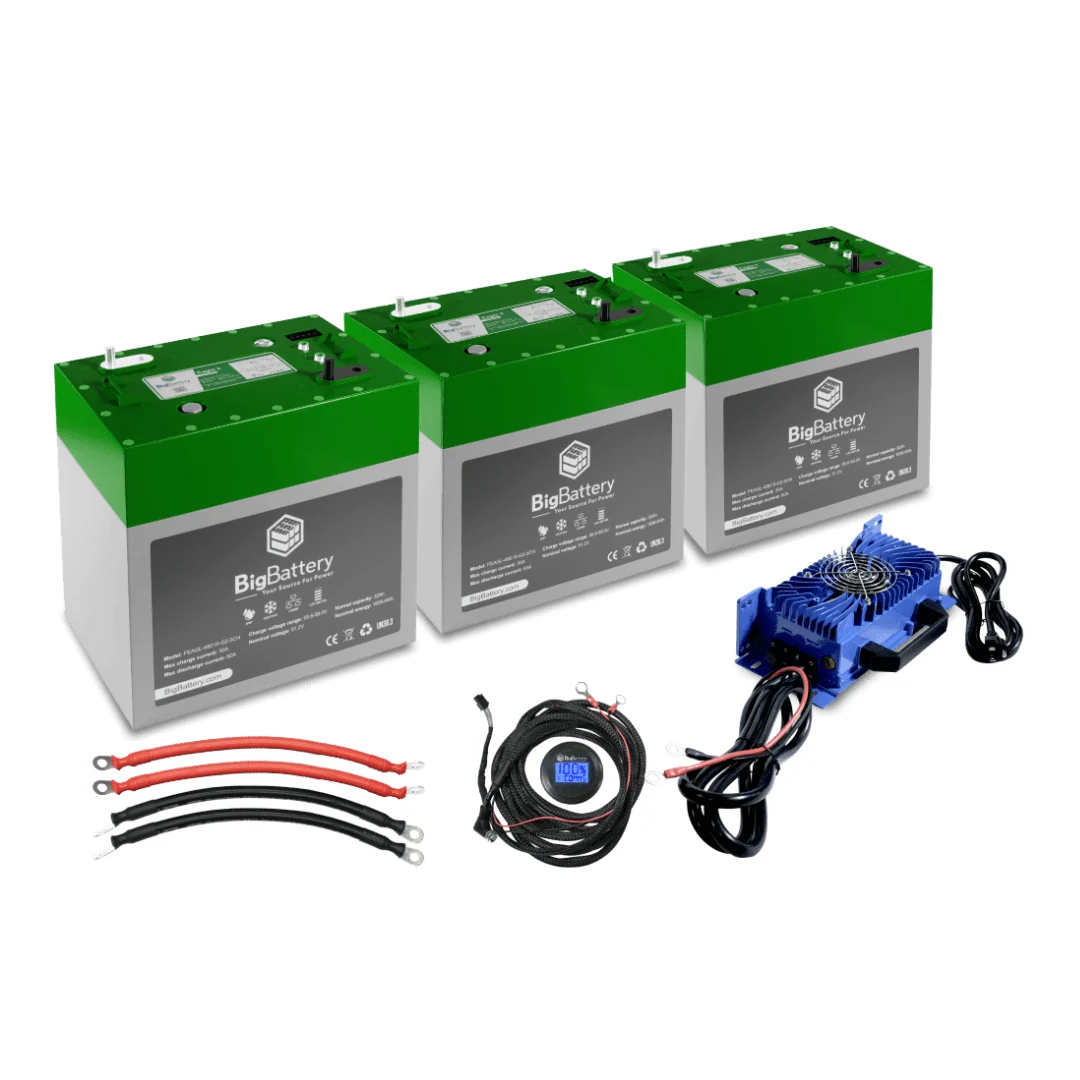

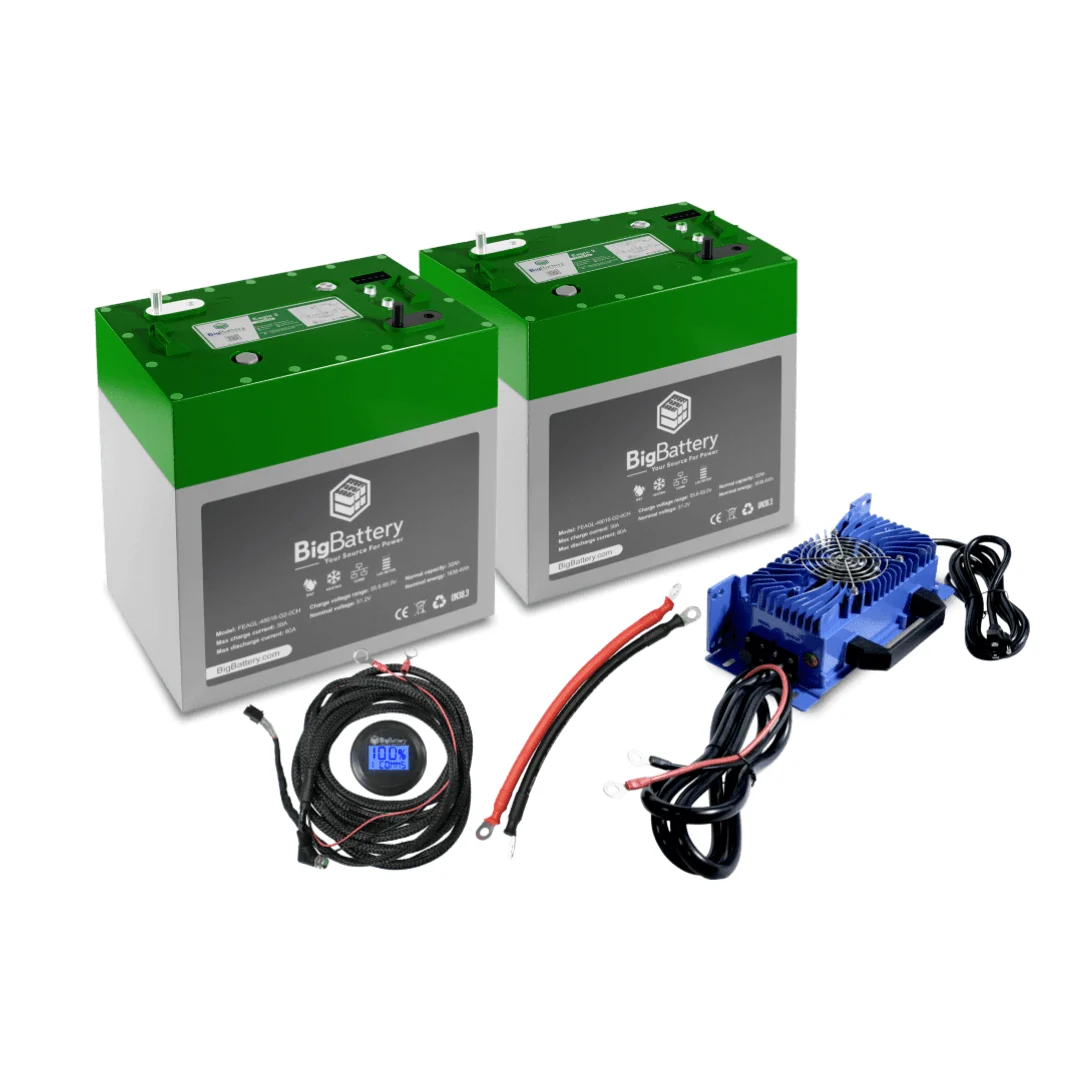

The 48V EAGLE 2 Kit replaces your cart’s lead-acid batteries with two or three 48V EAGLE 2 LiFePO4 batteries (1.63kWh each). They fit standard T-105 battery trays with no modifications and cut the cart’s weight significantly.

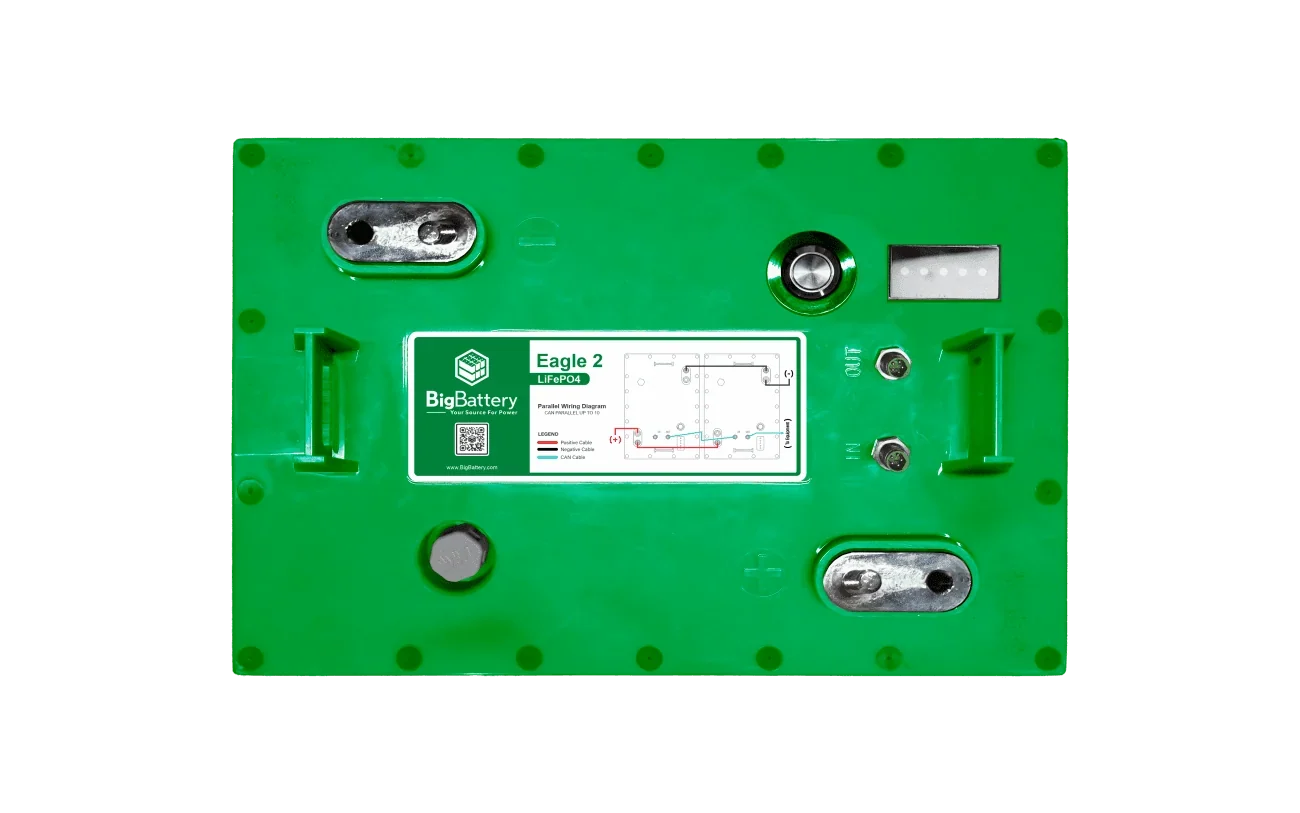

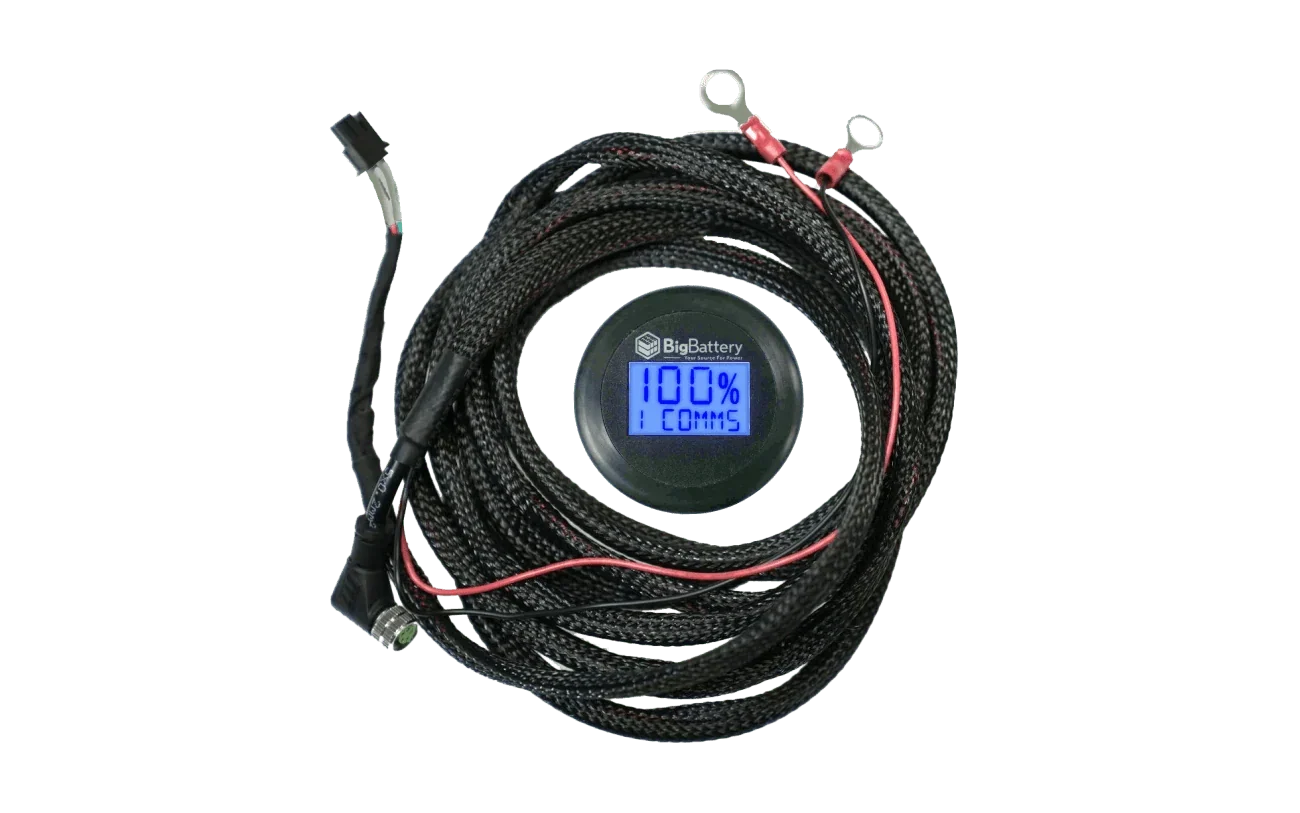

Each battery has an LED capacity meter and CANBus communication, and the kit adds an external capacity meter so you can check charge while the batteries are in the tray. The IP67 case resists dust and water, and self-heating supports charging in cold weather.
Who it’s for
- Golf carts.
- Utility vehicles, 48V UTVs and LSVs.
- Owners upgrading from T-105 lead-acid batteries.
Key benefits
- Drop-in: fits T-105 trays, no modifications.
- Lighter cart: far less weight than lead-acid.
- External meter: check charge from the dash.
- All-weather: IP67 and self-heating.
Specifications
| Batteries | 2 or 3 x 48V EAGLE 2 (1.63kWh each) |
|---|---|
| Total capacity | About 3.26kWh (2 batteries) or 4.89kWh (3 batteries) |
| Max continuous discharge | 60A per battery |
| Monitoring | LED meter on each battery, external capacity meter, CANBus |
| Chemistry | LiFePO4, Tier 1 cells |
| Form factor | GC2 (T-105 replacement) |
| Heating | Self-heating |
| Protection rating | IP67 / NEMA 6 |
| Charge temperature | -4°F to 131°F |
| Discharge temperature | -4°F to 140°F |
| Parallel | Up to 10 (not series capable) |
| Terminals | M8 |
FAQ
Will it fit my cart?
The batteries fit T-105 trays. Compare the kit’s continuous power with your motor and controller, or send us your cart model and we’ll check.
Two or three batteries?
Three batteries give more range and more combined current.
Warranty
Manufacturer’s warranty: 12 years. Source: BigBattery product page.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
