Description
Overview

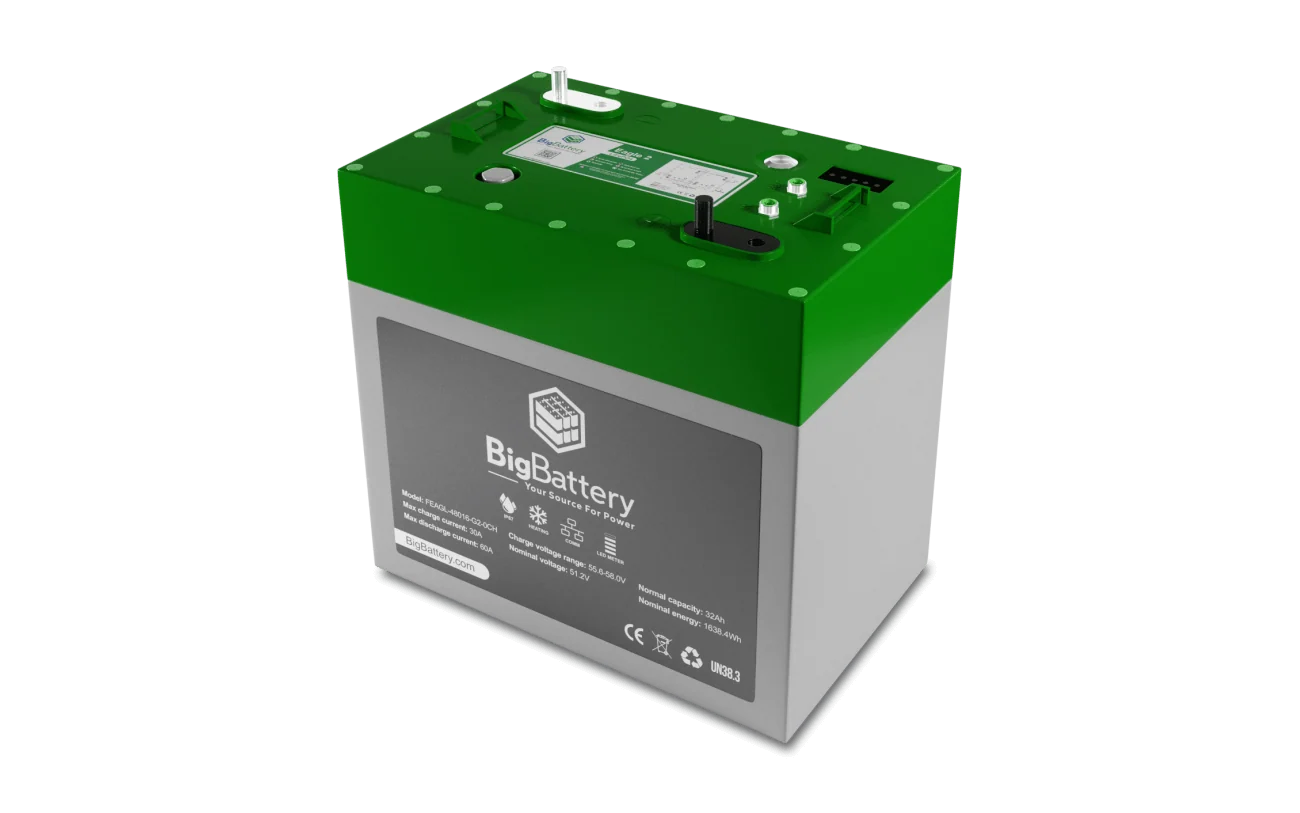

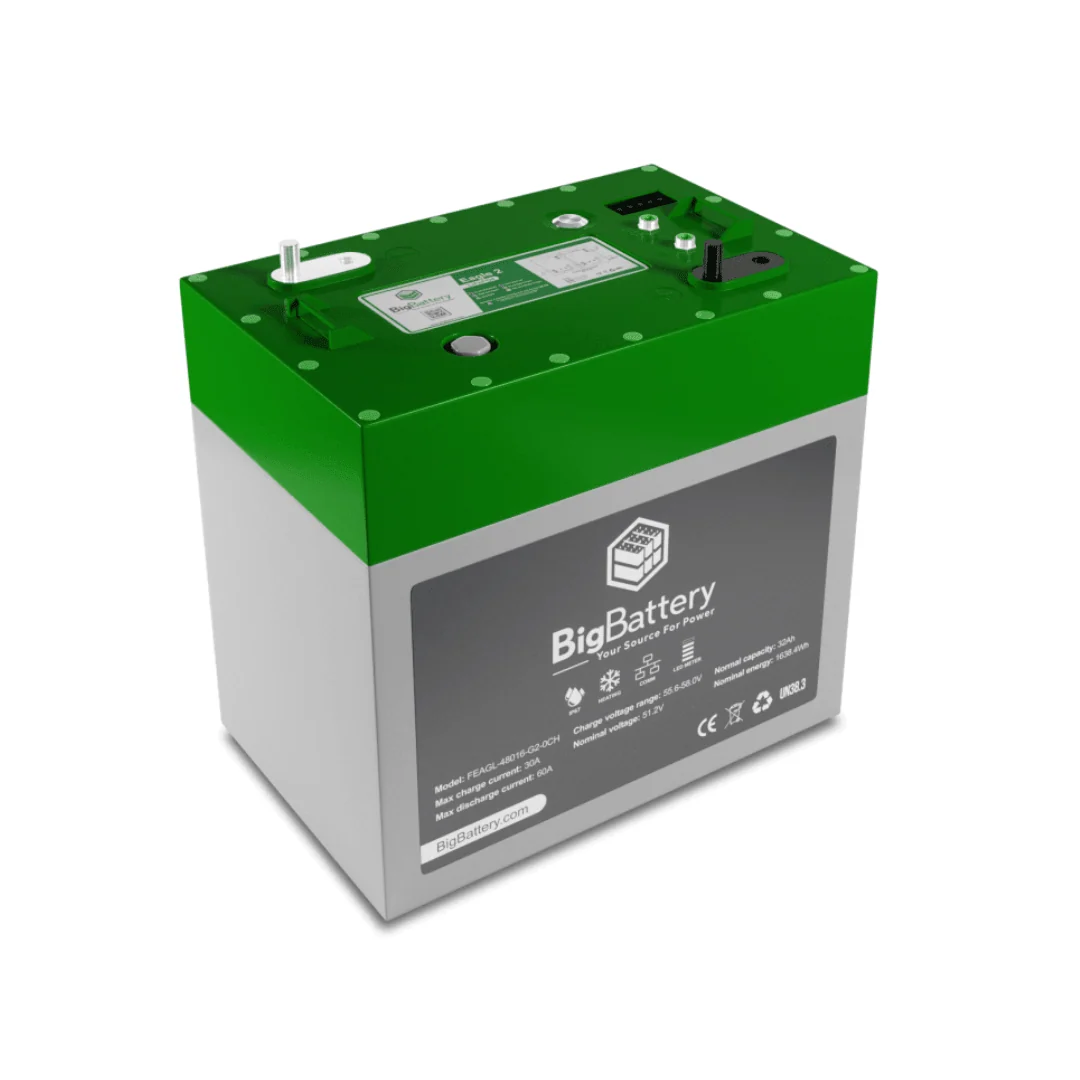

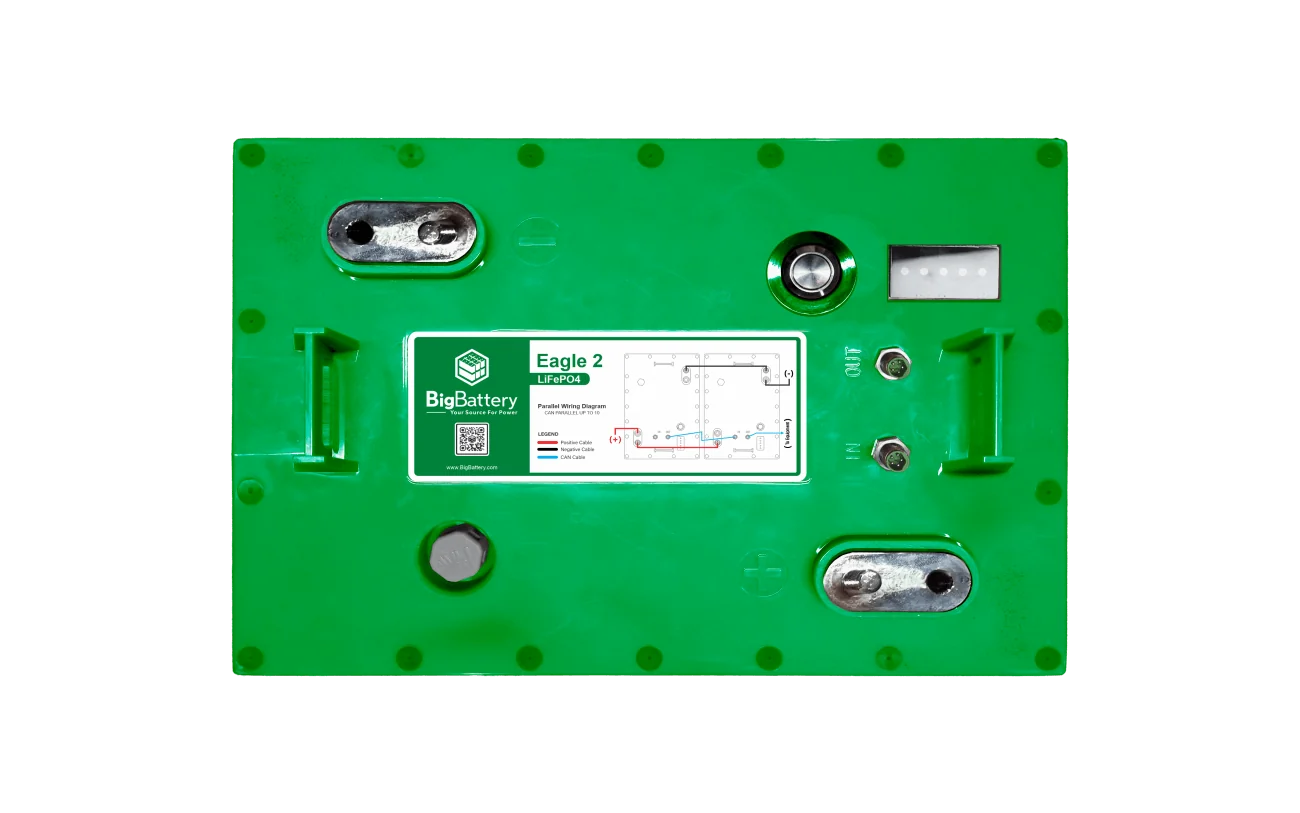

The 48V EAGLE 2 packs 1.63kWh of Tier 1 LiFePO4 cells into a compact GC2 case, a mirror-image replacement for a stock T-105 lead-acid battery. It has an LED capacity meter on top, CANBus communication, an IP67 / NEMA 6 case and a self-heating function.
Important: one EAGLE 2 is not designed to power an entire golf cart or utility vehicle. A single battery adds range and capacity to an existing EAGLE 2 kit. Compare the continuous power of the kit to your motor and controller to size it correctly.
Who it’s for
- EAGLE 2 kit owners adding range.
- 48V RVs and camper vans.
- Small 48V systems.
Key benefits
- Adds range: expands an EAGLE 2 kit.
- 60A continuous: 3,072W, 200A peak for 3 seconds.
- Weatherproof: IP67 / NEMA 6.
- Self-heating: charges down to -4°F.
Specifications
| Nominal voltage | 51.2V |
|---|---|
| Capacity (Ah) | 32Ah |
| Max continuous discharge | 60A (3,072W) |
| Peak discharge | 200A (3 seconds) |
| Max charge current | 30A |
| Communication | CANBus |
| Chemistry | LiFePO4, Tier 1 cells |
| Capacity | 1.63kWh |
| Form factor | GC2 (T-105 replacement) |
| Heating | Self-heating |
| Protection rating | IP67 / NEMA 6 |
| Charge temperature | -4°F to 131°F |
| Discharge temperature | -4°F to 140°F |
| Parallel | Up to 10 (not series capable) |
| Terminals | M8 |
| Dimensions | 7.1 x 10.2 x 10.8 in |
| Weight | 38 lb (manufacturer figure) |
FAQ
Can one battery run my golf cart?
No. A single EAGLE 2 is meant to add range to an EAGLE 2 kit, not to power a cart on its own.
How many can I connect?
Up to 10 in parallel.
Warranty
Manufacturer’s warranty: 12 years. Source: BigBattery product page.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
