Description
Overview

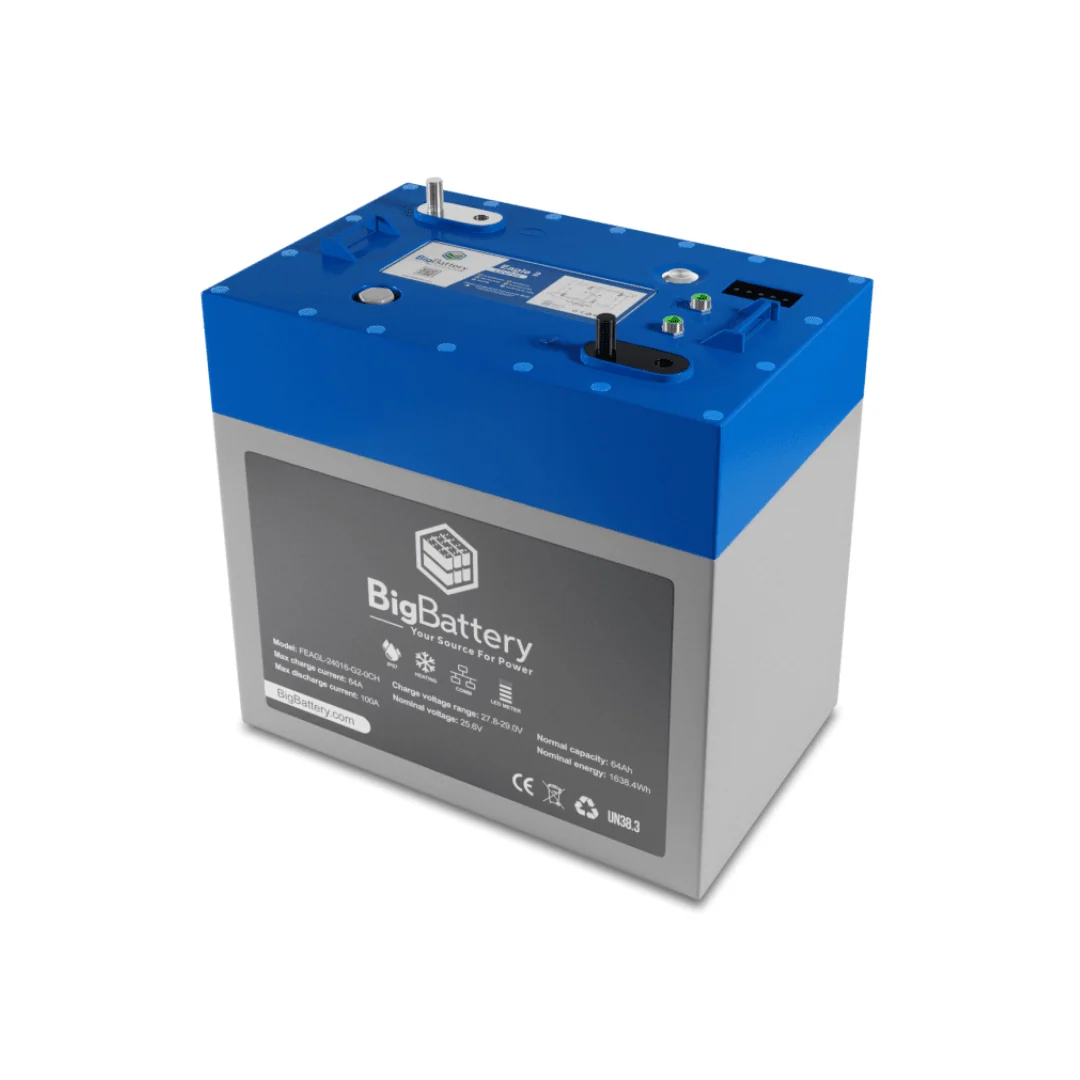

The 24V EAGLE 2 packs 1.63kWh of Tier 1 LiFePO4 cells into a compact GC2 case, a mirror-image replacement for a stock T-105 lead-acid battery. It’s made for RVs, camper vans, scissor lifts and other industrial equipment.

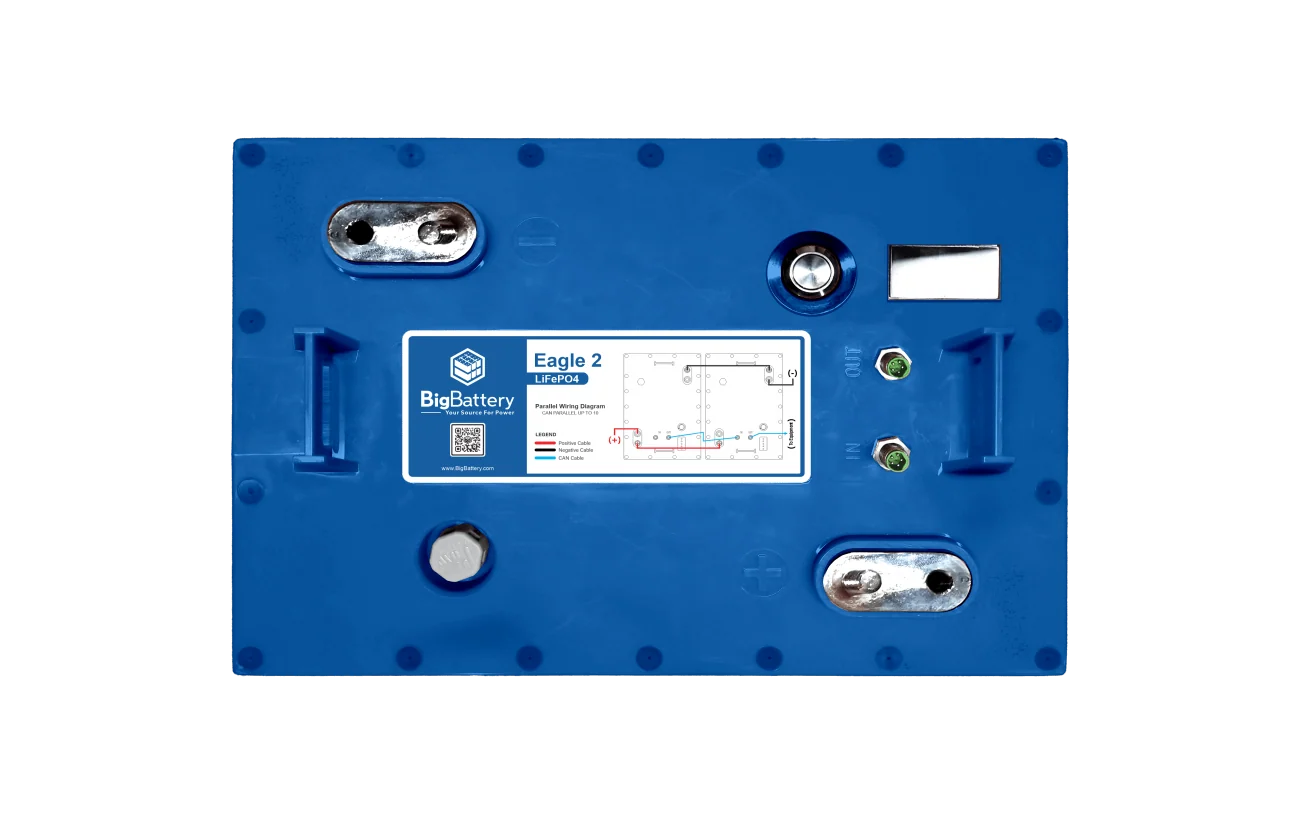

An LED capacity meter sits on top, CANBus lets you monitor the battery, and the case is rated IP67 / NEMA 6 against dust and water. A self-heating function and wide temperature range keep it working through winter.
Who it’s for
- RVs and camper vans.
- Scissor lifts and industrial equipment.
- Anyone replacing T-105 lead-acid batteries.
Key benefits
- Drop-in: GC2 size, replaces a T-105.
- 100A continuous: 2,560W, 200A peak for 5 seconds.
- Weatherproof: IP67 / NEMA 6.
- Self-heating: charges down to -4°F.
Specifications
| Nominal voltage | 25.6V |
|---|---|
| Capacity (Ah) | 64Ah |
| Max continuous discharge | 100A (2,560W) |
| Peak discharge | 200A (5 seconds) |
| Max charge current | 64A |
| Communication | CANBus |
| Chemistry | LiFePO4, Tier 1 cells |
| Capacity | 1.63kWh |
| Form factor | GC2 (T-105 replacement) |
| Heating | Self-heating |
| Protection rating | IP67 / NEMA 6 |
| Charge temperature | -4°F to 131°F |
| Discharge temperature | -4°F to 140°F |
| Parallel | Up to 10 (not series capable) |
| Terminals | M8 |
| Dimensions | 7.1 x 10.2 x 10.8 in |
| Weight | 38 lb (manufacturer figure) |
FAQ
Can I wire two in series for 48V?
No. EAGLE 2 batteries connect in parallel only, up to 10. Use the 48V EAGLE 2 for 48V systems.
Does it fit my battery tray?
It’s a GC2 form factor, the same as a T-105 lead-acid battery.
Warranty
Manufacturer’s warranty: 12 years. Source: BigBattery product page.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
