Description
Overview

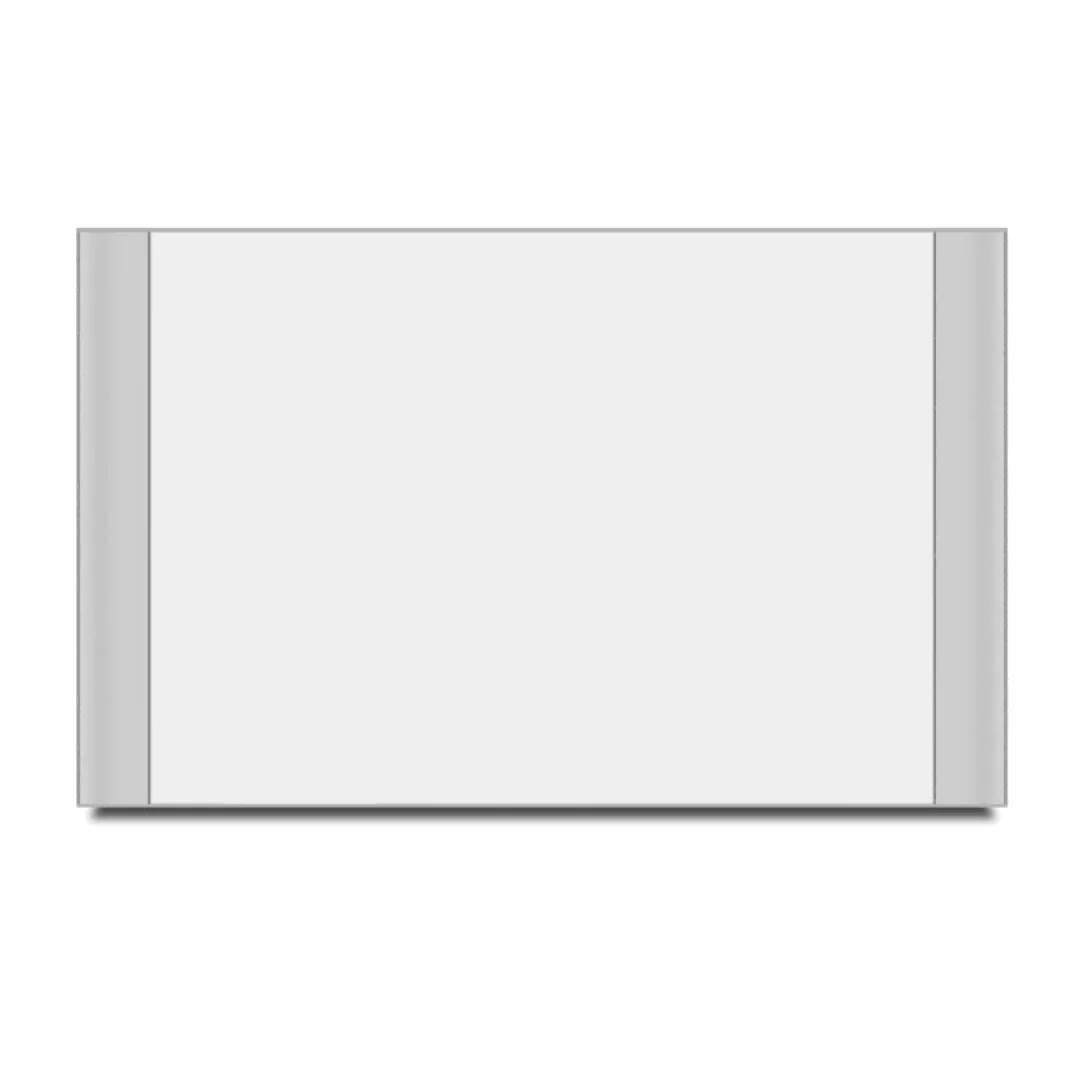

Each ETHOS module adds 5.12kWh (100Ah at 51.2V) to a BigBattery ETHOS system. Modules stack on each other and connect to the ETHOS control box, which handles up to 16 modules (about 81.6kWh).
A smart BMS balances the cells automatically, an internal fire suppression system adds safety, and the case is rated IP65 / NEMA 4X. ETHOS communicates over CANBus and RS485 with inverters from EG4, Sol-Ark, Growatt, Voltronic, Victron, Megarevo, Schneider, SMA, Deye, Solis, Inhenergy and Luxpower.
Note: this is a single module for expanding an ETHOS system. It needs an ETHOS control box.
Who it’s for
- ETHOS owners adding capacity.
- Whole-home solar battery systems.
- Cabins and tiny homes with 48V inverters.
Key benefits
- 5.12kWh per module: stack to grow your system.
- Certified: UL 9540A, UL 1973 and UN 38.3.
- Safe: internal fire suppression.
- Weatherproof: IP65 / NEMA 4X.
- Broad compatibility: major 48V inverter brands.
Specifications
| Nominal voltage | 51.2V |
|---|---|
| Capacity | 100Ah / 5.12kWh |
| Chemistry | LiFePO4 |
| Max continuous discharge | 100A (5,120W) |
| Peak discharge | 300A (5 seconds) |
| Max charge current | 200A |
| Charge temperature | 32°F to 113°F |
| Discharge temperature | -4°F to 140°F |
| Parallel | Up to 16 per control box |
| Communication | CANBus, RS485 |
| Protection rating | IP65 / NEMA 4X |
| Certifications | UL 9540A, UL 1973, UN 38.3 |
| Dimensions | 6.7 x 26.5 x 16.14 in |
| Weight | 121 lb (manufacturer figure) |
FAQ
Do I need the control box?
Yes. Each ETHOS system uses an ETHOS control box, which manages up to 16 modules.
Which inverters does it work with?
EG4, Sol-Ark, Growatt, Voltronic, Victron, Megarevo, Schneider, SMA, Deye, Solis, Inhenergy and Luxpower, according to BigBattery.
Warranty
Manufacturer’s warranty: 12 years. Source: BigBattery product page.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
