Description
Overview

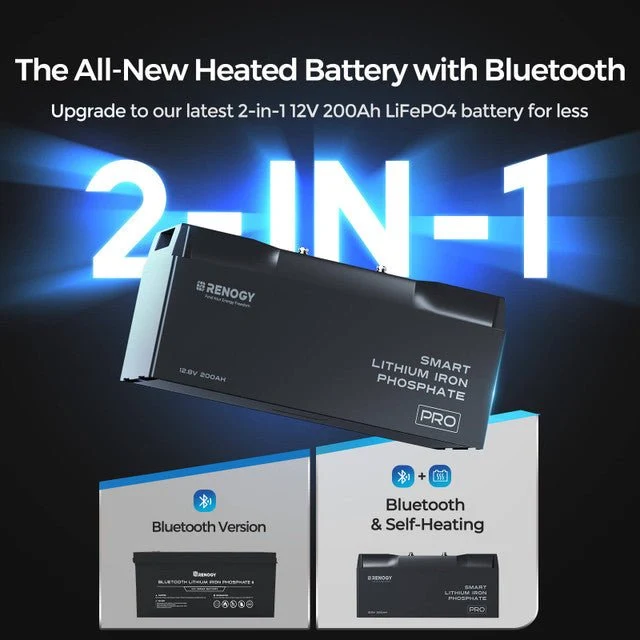

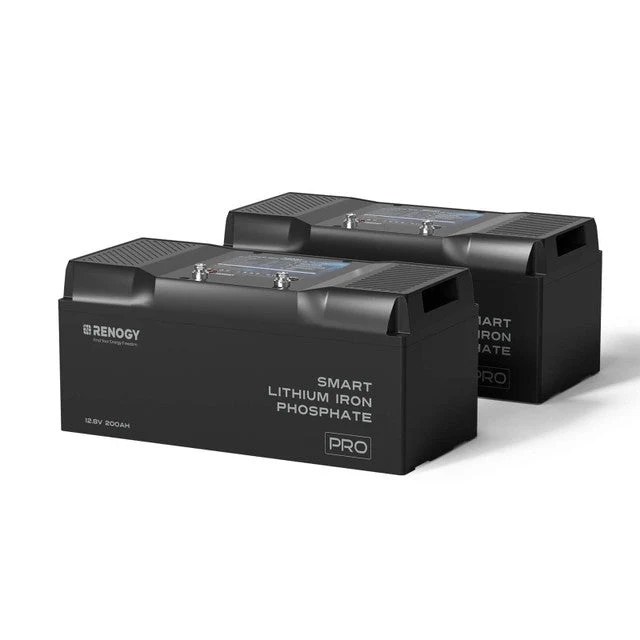

The Renogy 12V 200Ah Pro stores up to 2.56kWh and is built to withstand splashes, heat and vibration on overland trips, boats and trailers.

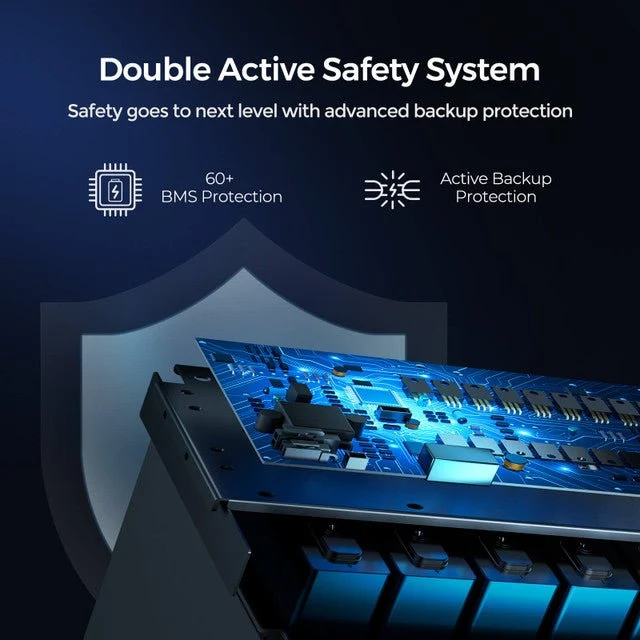

An automotive-grade BMS provides over 60 protections and alerts, and active backup protection cuts the circuit 40 times faster than passive protection if a MOSFET switch fails. It self-heats when the charging current is above 6A, and its UL94 V-0 casing resists fire.
Who it’s for
- Overlanders and 4×4 builds.
- Campervans, sheds, catamarans and 5th-wheel trailers.
- Winter travelers who need to charge below freezing.
Key benefits
- 60+ BMS protections: an automotive-grade battery management system with over 60 protection mechanisms and alerts.
- Active backup protection: cuts the circuit 40 times faster than conventional passive protection if a MOSFET switch fails.

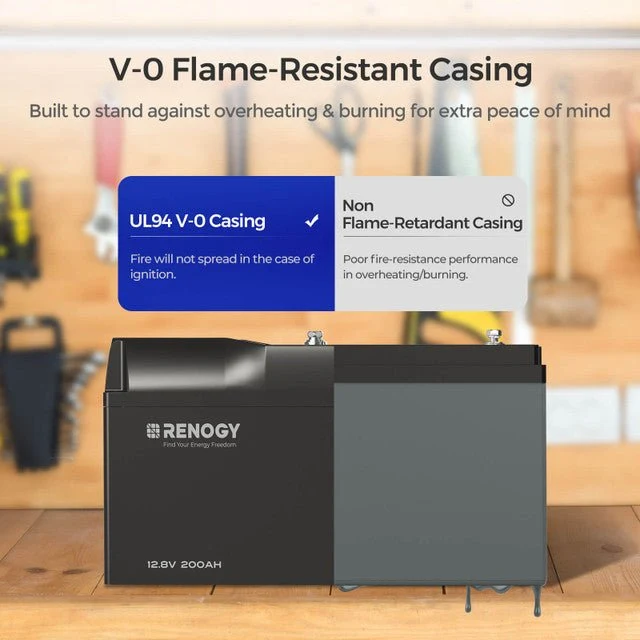

- Fire-resistant casing: rated UL94 V-0 for resistance to vertical burning.
- Self-heating: automatic above 6A of charging current.
- Capacity: up to 2.56kWh per battery.
Specifications
| Voltage | 12V |
|---|---|
| Capacity | 200Ah (up to 2.56kWh) |
| Chemistry | LiFePO4 |
| BMS protections | 60+ |
| Casing | UL94 V-0 fire-resistant |
| Heating | Automatic, charging current above 6A |

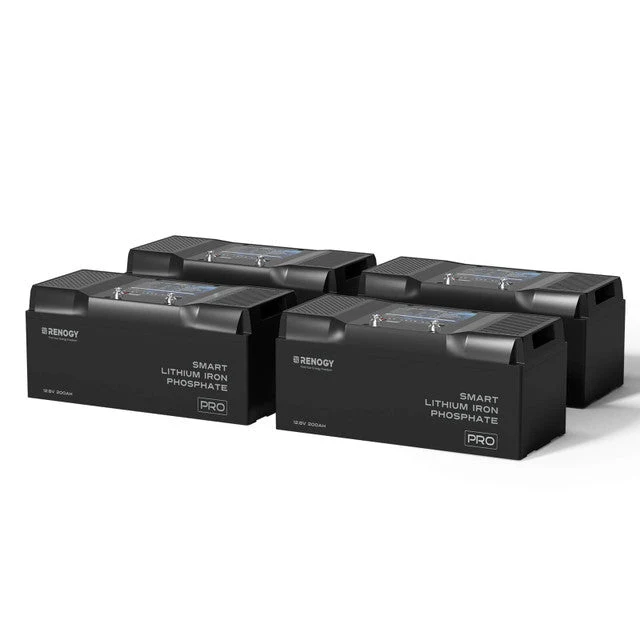

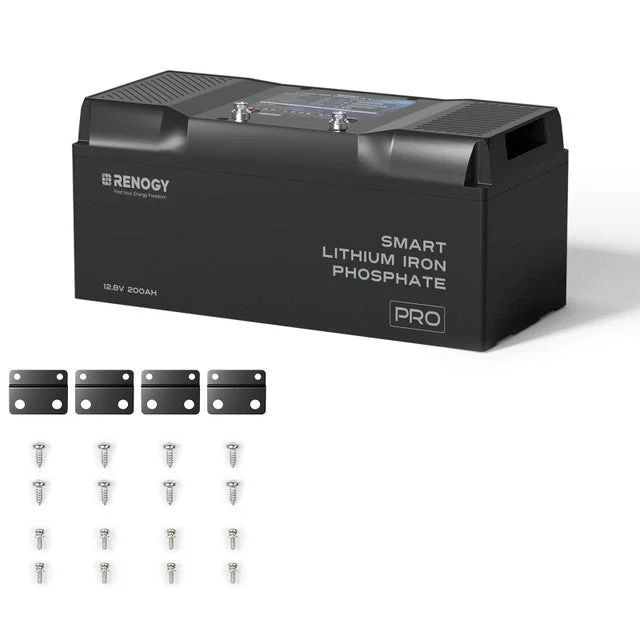

| Options | 1 or 2 batteries, or 1 battery with mounting brackets |
| Installation clearance | Leave 1.97 to 3.94 in (5 to 10 cm) above the battery and at least 7.87 in (20 cm) on the busbar side. |
| Weight (each) | 50.7 lb (manufacturer figure) |
FAQ
How much energy does it store?
Up to 2.56kWh per battery.
Is it suitable for off-road use?

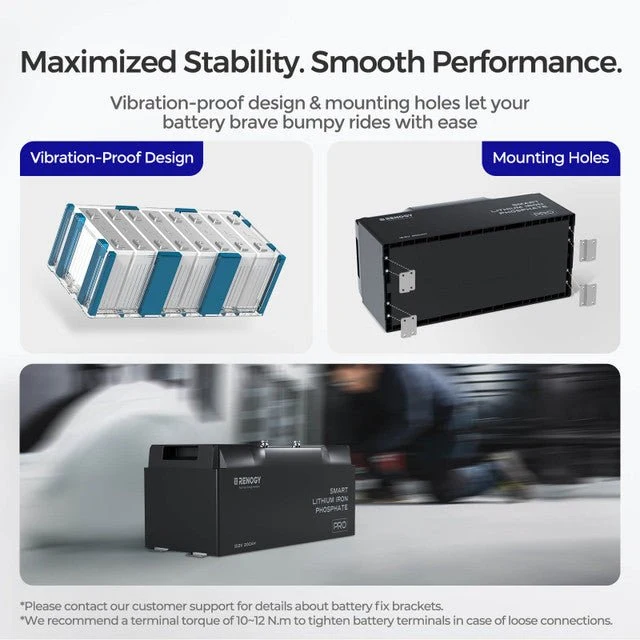

Yes. Renogy built it to withstand splashes, heat and vibration.
Warranty
Manufacturer’s warranty: 7 years, prorated. Prorated: replacements in the first 12 months are free; after that Renogy charges a share of the original price based on the time used. Source: Renogy limited warranty.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
