Description
Overview
The Renogy Core 24V 100Ah uses automotive-grade, Grade-A cells to keep weight down.
Grade-A prismatic cells are rated for 5000 cycles at 80% depth of discharge, which Renogy says is 10 times longer than lead-acid, with a 10-year lifespan. One 24V battery replaces two 12V 100Ah batteries with 30% less wiring, and the programmable BMS balances cells automatically.
Who it’s for
- 24V RV, marine and trolling setups.
- Emergency home backup.

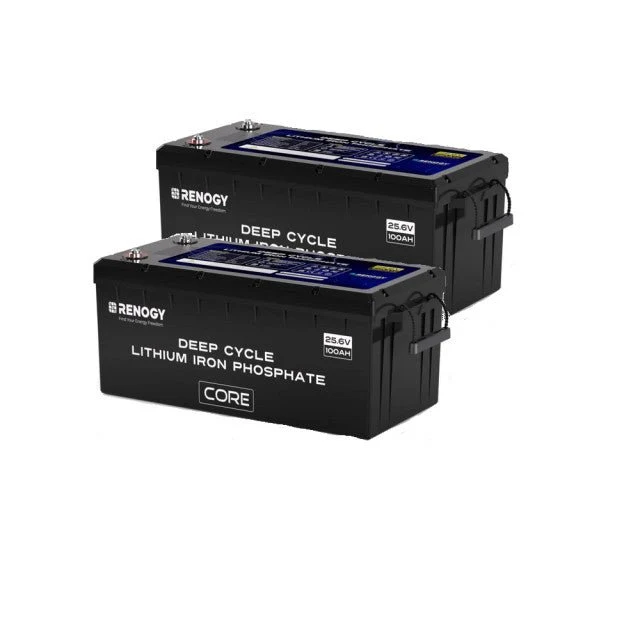

- Owners replacing two 12V batteries.
Key benefits
- Long life: 5000 cycles at 80% DOD and a 10-year lifespan.
- Cleaner 24V setup: 30% less wiring than two 12V batteries.
- Automatic balancing: programmable BMS balances cells while charging.

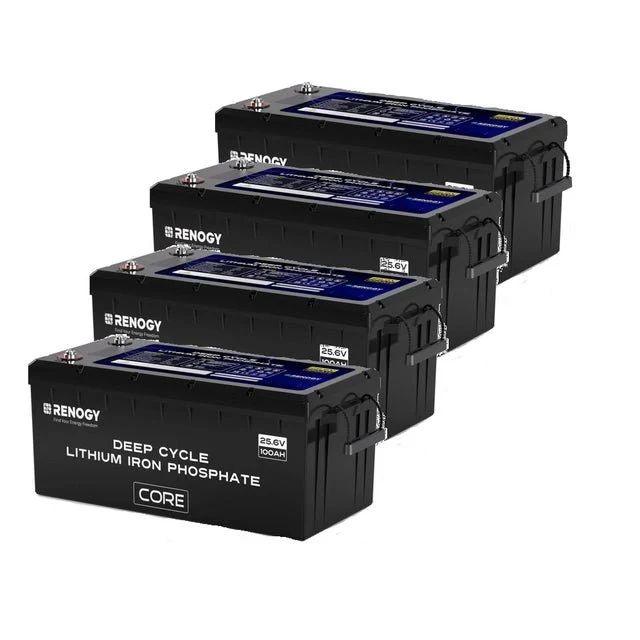

- Expandable: up to 8 in parallel or 2 in series; up to 40.96kWh with 16 in series-parallel.
Specifications
| Voltage | 24V |
|---|---|
| Capacity | 100Ah |
| Chemistry | LiFePO4, Grade-A prismatic cells |
| Cycle life | 5000 at 80% DOD |
| Expandable to | 40.96kWh |
| Options | 1 or 2 batteries |
| Installation clearance | Leave 1.97 to 3.94 in (5 to 10 cm) above the battery and at least 7.87 in (20 cm) on the busbar side. |
| Weight (each) | 46.3 lb (manufacturer figure) |
FAQ
How many can I connect?
Up to 8 in parallel or 2 in series, and up to 16 in series-parallel for 40.96kWh.
Why choose 24V over two 12V batteries?
Renogy states it needs 30% less wiring and avoids unbalanced cells across two batteries.
Warranty
Manufacturer’s warranty: 5 years, prorated. Prorated: replacements in the first 12 months are free; after that Renogy charges a share of the original price based on the time used. Source: Renogy limited warranty.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
Reviews
There are no reviews yet.
