Description
Overview

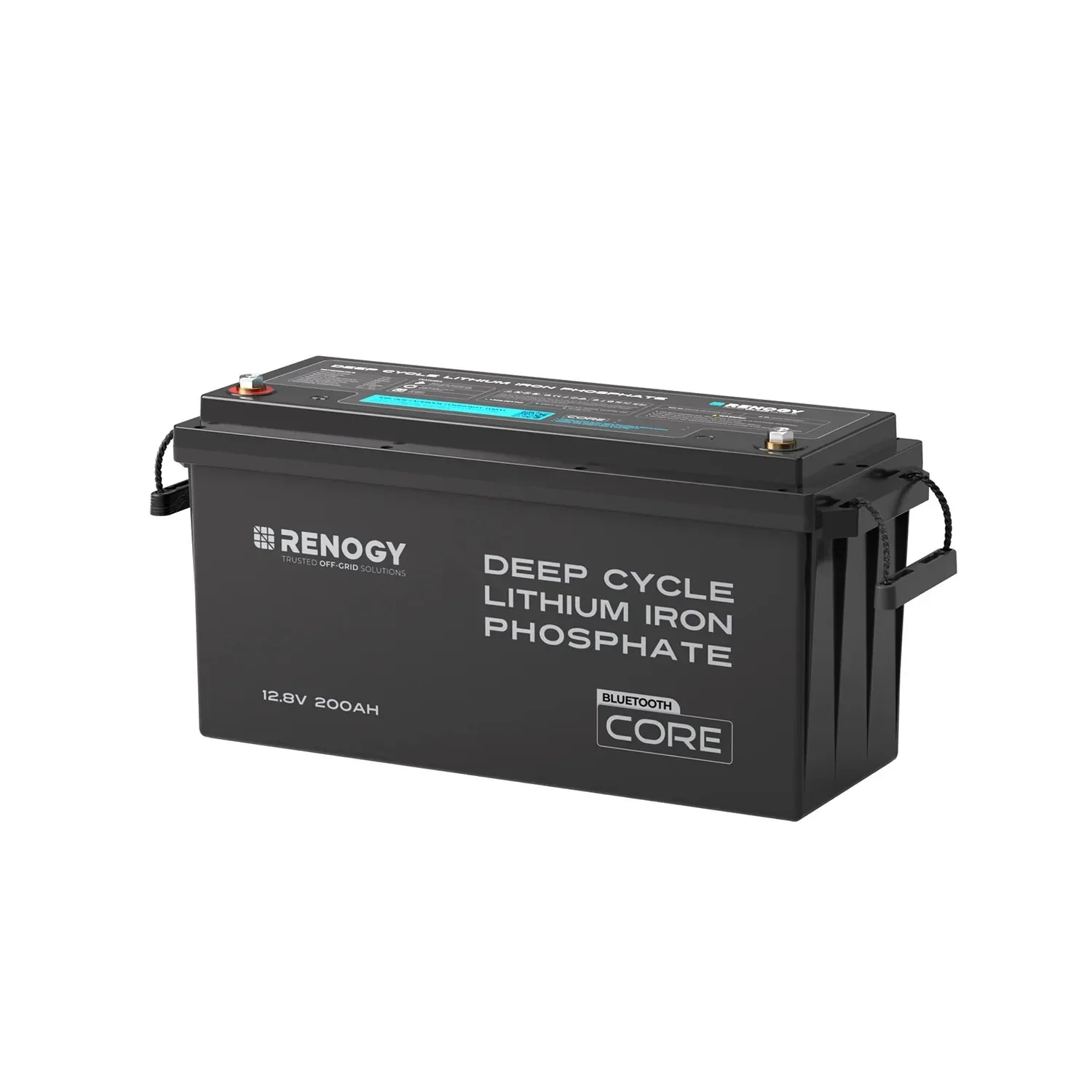

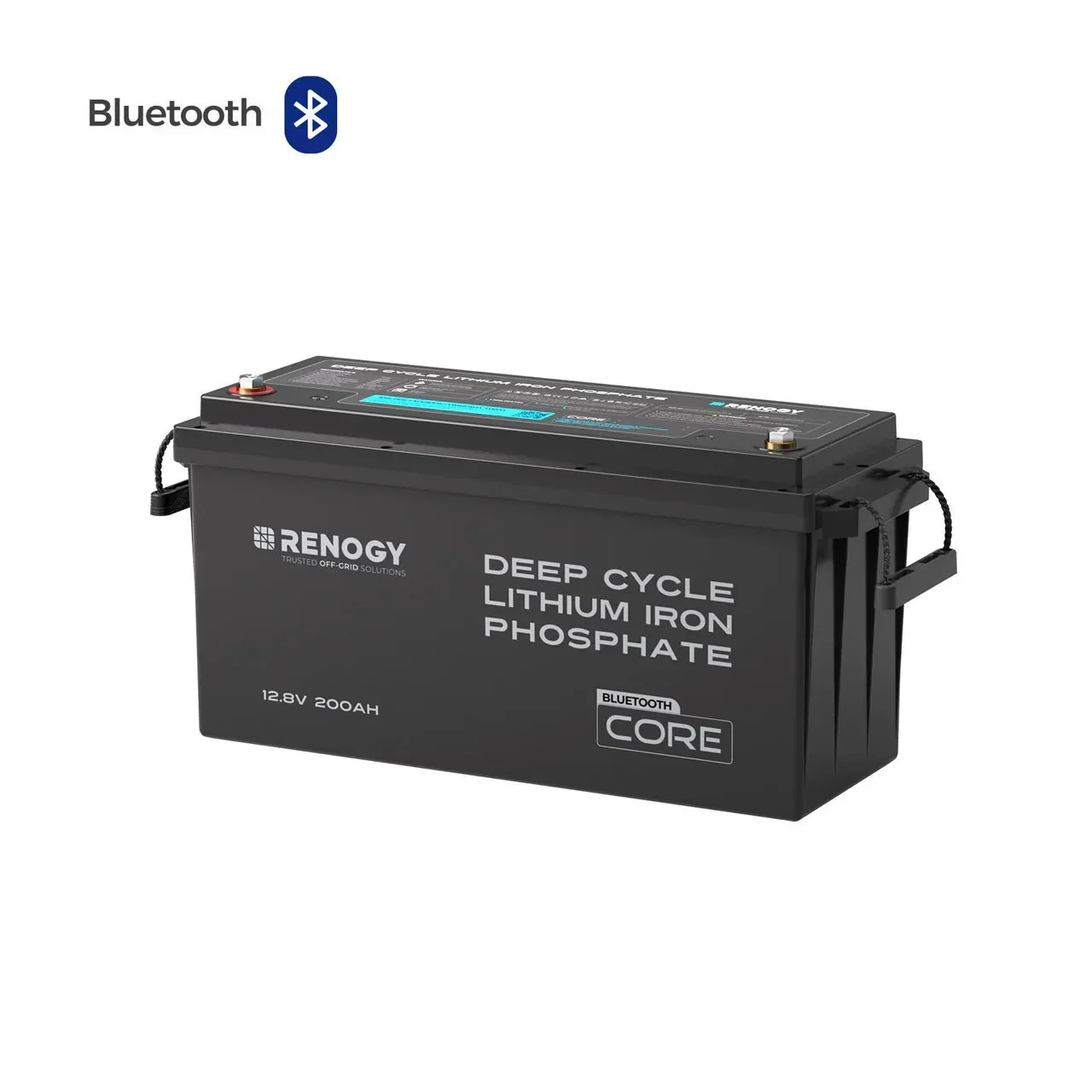

This version of the Core 12V 200Ah adds Bluetooth: track remaining power, voltage and current in the Renogy app and get alerts when a protection is triggered.

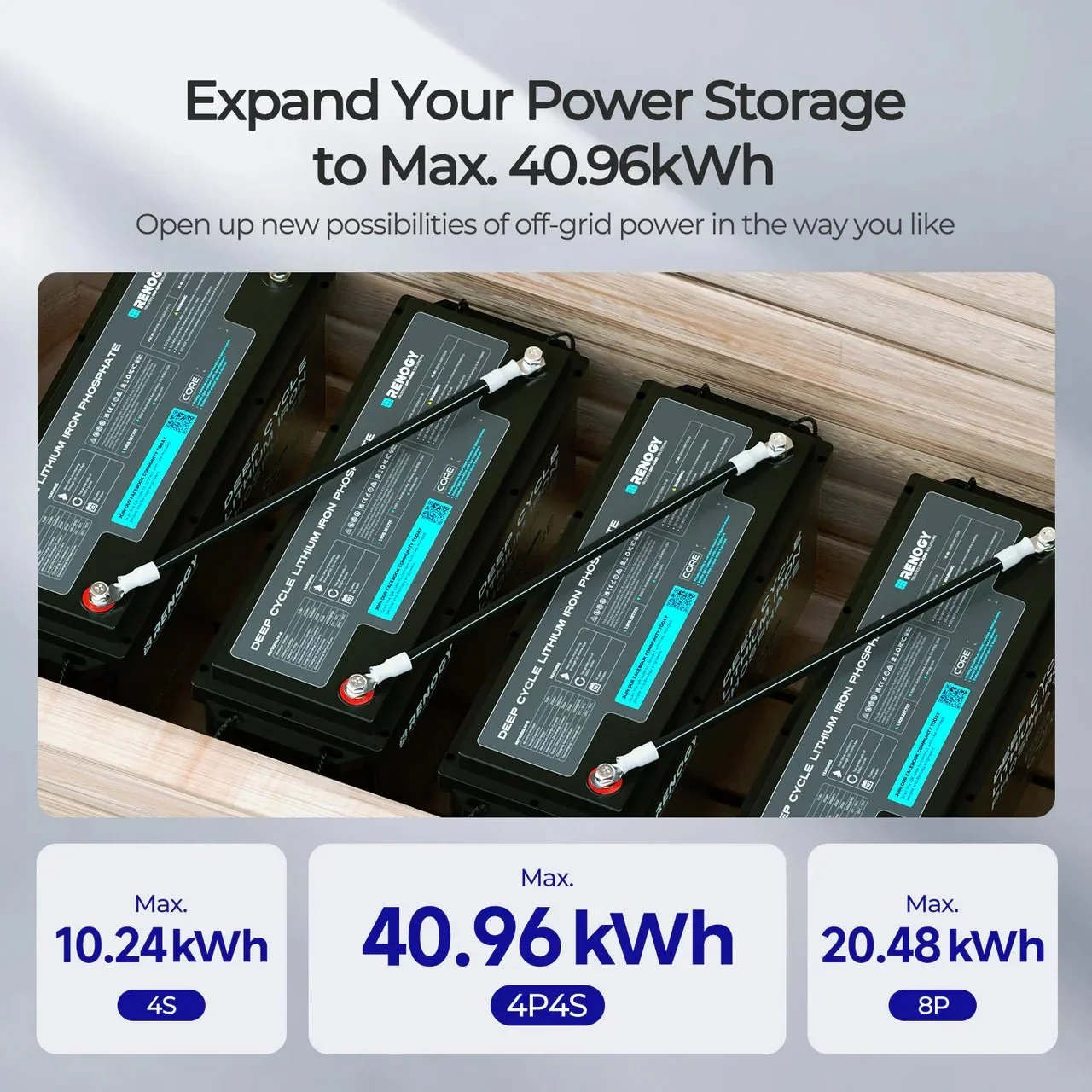

Wire it in series for 24V, 36V or 48V systems, or in parallel for up to 20.48kWh with 8 batteries. Renogy notes Generation 2 is compatible with Generation 1.
Who it’s for
- RV owners who want to monitor batteries from their phone.
- Home backup for outages and hurricanes.
- Expanding an existing Core 200Ah bank.
Key benefits
- Bluetooth monitoring: remaining power, voltage, current and protection alerts.
- Flexible wiring: series, parallel or series-parallel.
- Big systems: up to 20.48kWh with 8 batteries.
Specifications
| Voltage | 12V |
|---|---|
| Capacity | 200Ah |
| Chemistry | LiFePO4 |
| Connectivity | Bluetooth (Renogy app) |
| Expandable to | 20.48kWh (8 in parallel) |
| Installation clearance | Leave 1.97 to 3.94 in (5 to 10 cm) above the battery and at least 7.87 in (20 cm) on the busbar side. |
| Weight | 44.53 lb (manufacturer figure) |
FAQ
Will it work with my older Core 200Ah?
Renogy states Generation 2 is compatible with Generation 1. Contact us if you’re unsure which version you have.

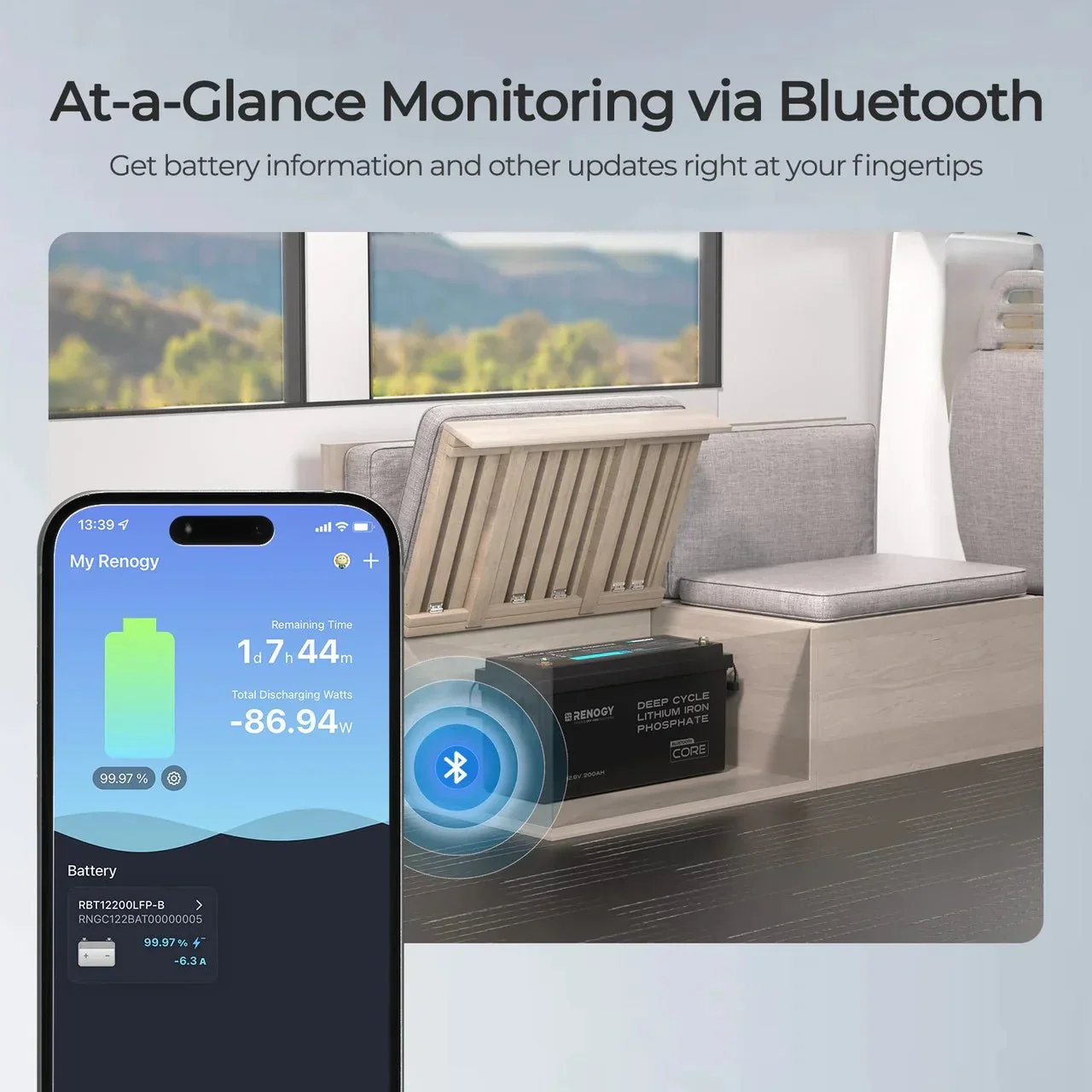

What can I see in the app?
Remaining power, voltage, current and alerts for protection triggers.
Warranty
Manufacturer’s warranty: 5 years, prorated. Prorated: replacements in the first 12 months are free; after that Renogy charges a share of the original price based on the time used. Solar panels, chargers and other items included in a bundle are covered by their own manufacturer’s warranty. Source: Renogy limited warranty.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
