Description
Overview

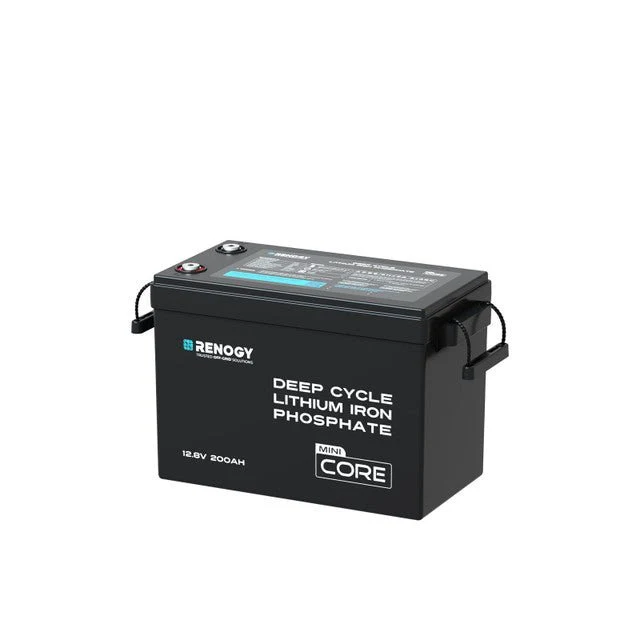

The Renogy Core Mini 200Ah is 21% smaller than its counterparts while keeping a robust 200A BMS. It fits various battery boxes, including 8D and 4D sizes.
The BMS cuts off charging automatically in low temperatures, so you don’t have to manage it yourself on winter trips.
Who it’s for
- RV and marine owners who need capacity in a small space.
- Home and travel power setups.
- Winter travelers.
Key benefits
- Compact: 21% smaller than its counterparts.
- Robust BMS: 200A battery management system.
- Hands-free cold protection: automatic low-temperature cut-off.
- Fits standard boxes: including 8D and 4D sizes.
Specifications
| Voltage | 12.8V |
|---|---|
| Capacity | 200Ah |
| Chemistry | LiFePO4 |
| BMS | 200A |

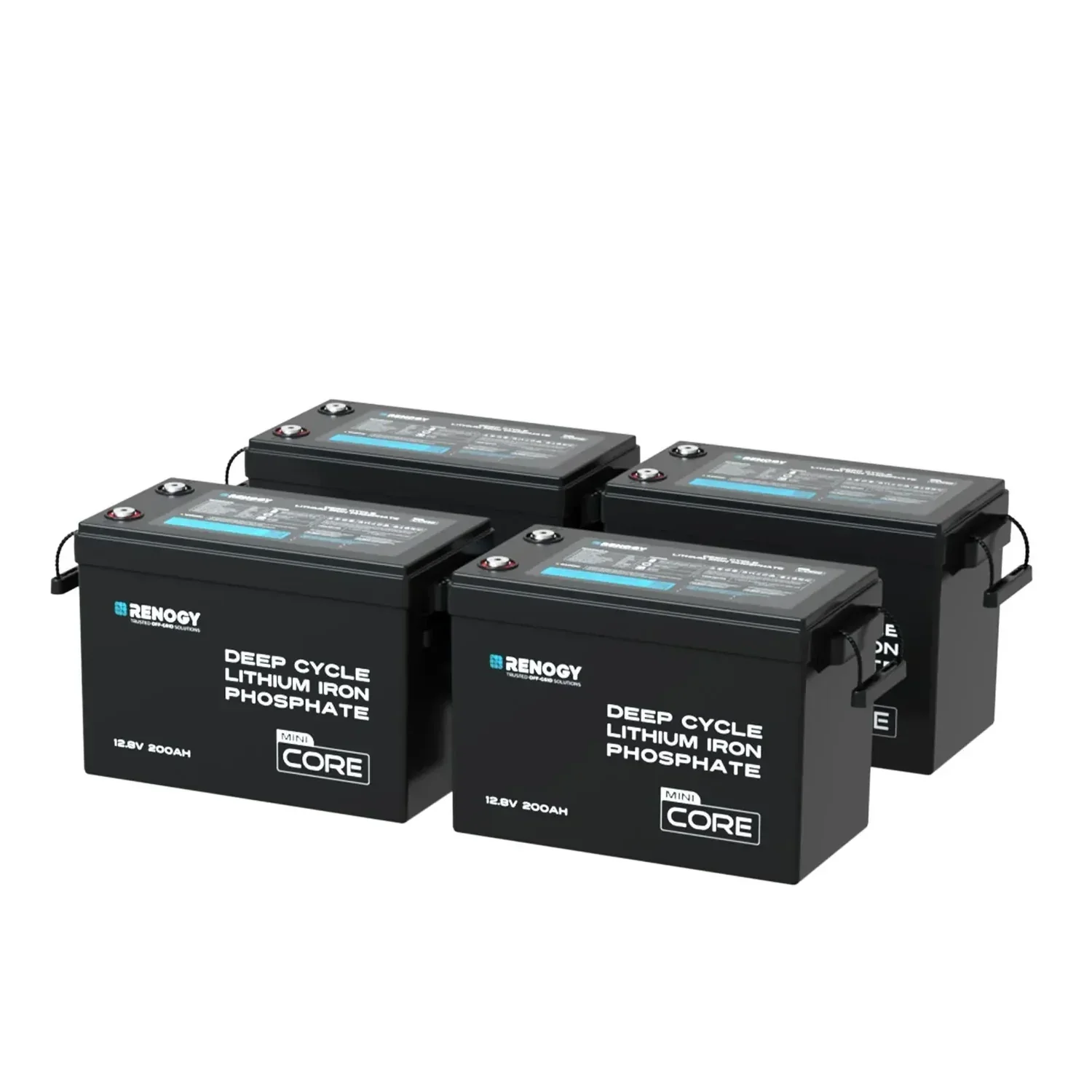

| Options | 1 or 4 batteries |
| Installation clearance | Leave 1.97 to 3.94 in (5 to 10 cm) above the battery and at least 7.87 in (20 cm) on the busbar side. |
| Weight (each) | 42.44 lb (manufacturer figure) |
FAQ
Does it protect itself in the cold?
Yes. The BMS has an automatic low-temperature cut-off.
What battery box does it fit?
Renogy lists various boxes, including 8D and 4D sizes.
Warranty
Manufacturer’s warranty: 5 years, prorated. Prorated: replacements in the first 12 months are free; after that Renogy charges a share of the original price based on the time used. Source: Renogy limited warranty.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
Reviews
There are no reviews yet.
