Description
Overview

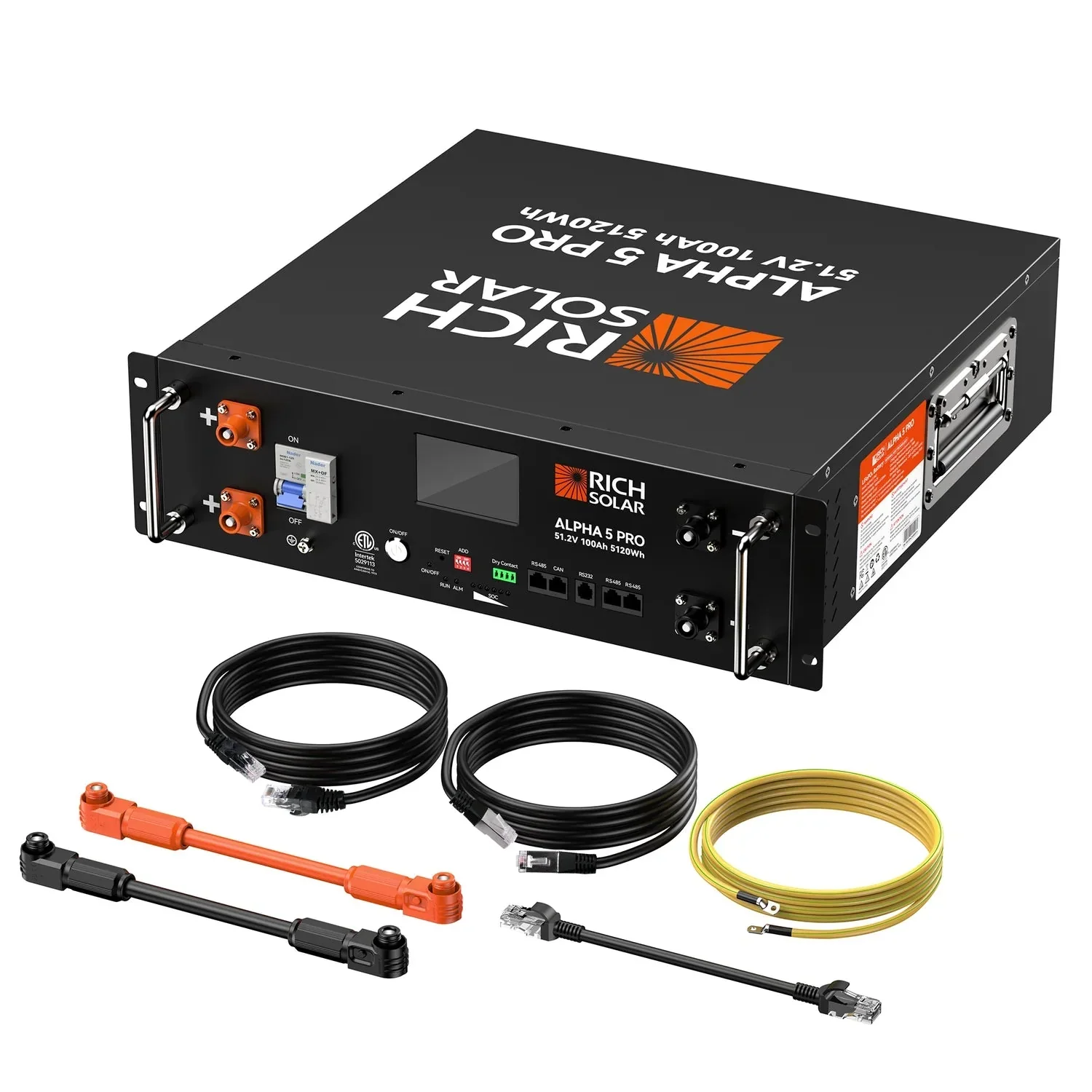

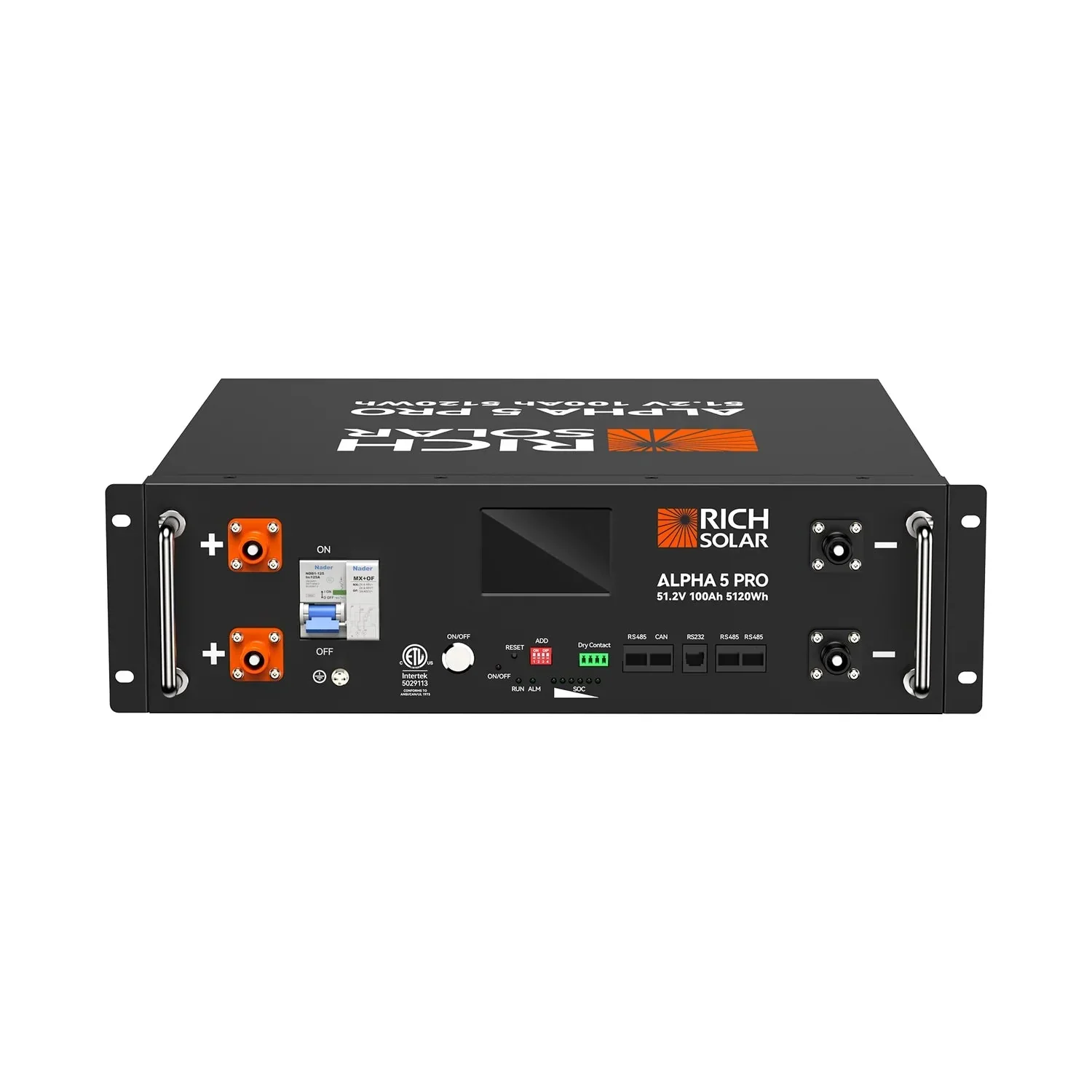

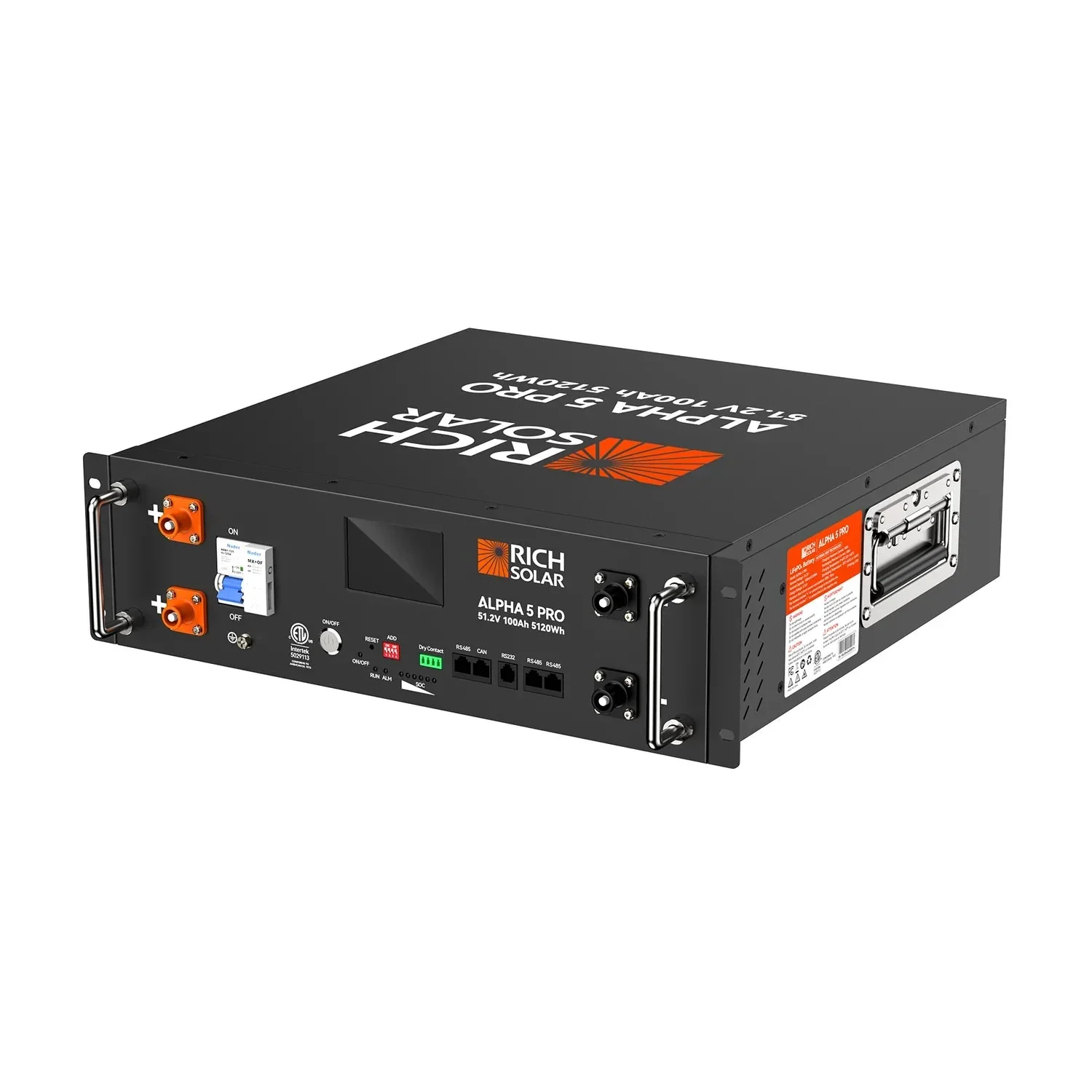

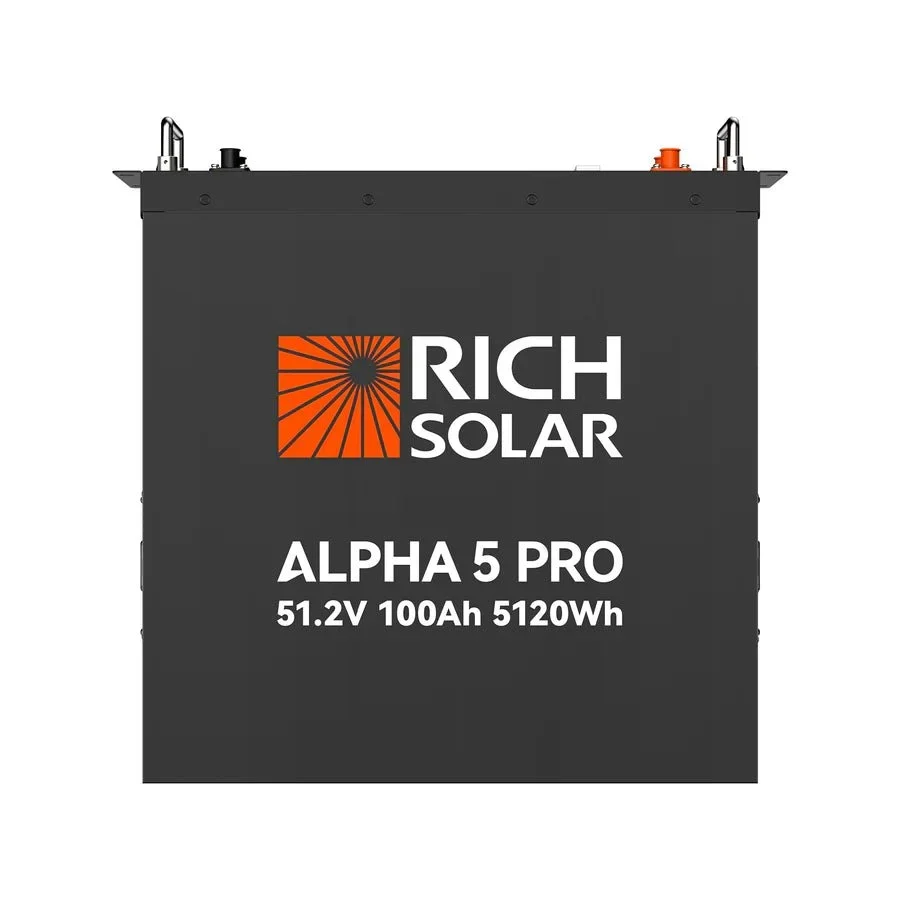

The ALPHA 5 PRO is a 3U rack-mount 48V battery for home backup and off-grid systems. Each holds 5,120Wh and supplies 100A of continuous charge and discharge current. Rich Solar currently rates it for up to 30 batteries in parallel (153.6kWh).

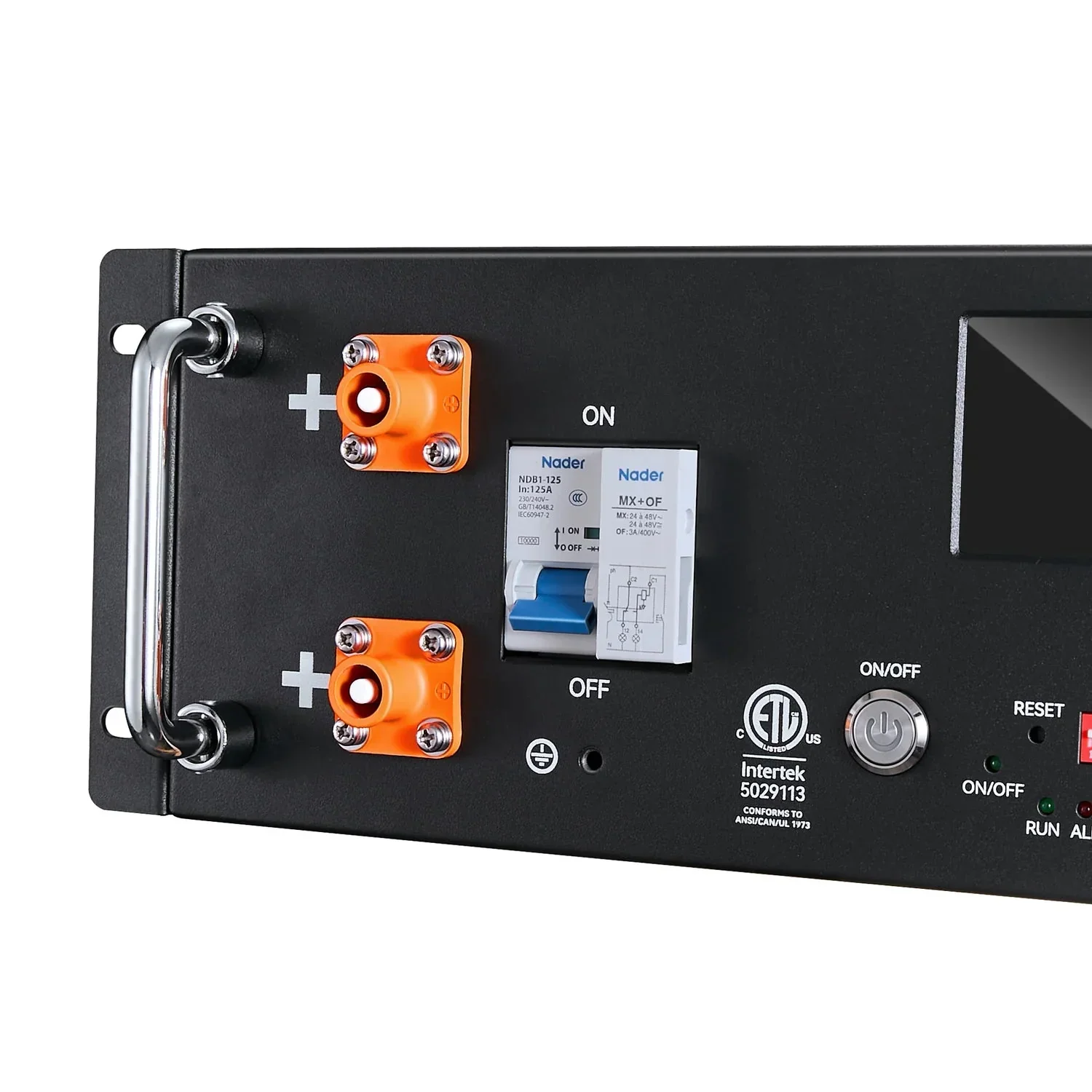

It talks to major inverter brands over CAN, RS485 and RS232, and you can check it on the front LCD touchscreen, by Wi-Fi or Bluetooth in the RICH SOLAR app, or with PC software. The BMS includes a built-in circuit breaker, and internal heating allows safe charging in the cold.
Rated for 7,000+ cycles and certified to UL 1973 and UL 9540A.
Who it’s for
- Whole-home and off-grid solar battery banks.
- Owners of 48V hybrid inverters, including Rich Solar NOVA models.
- Commercial and agricultural energy storage.
Key benefits
- 5,120Wh per battery: 100A continuous.

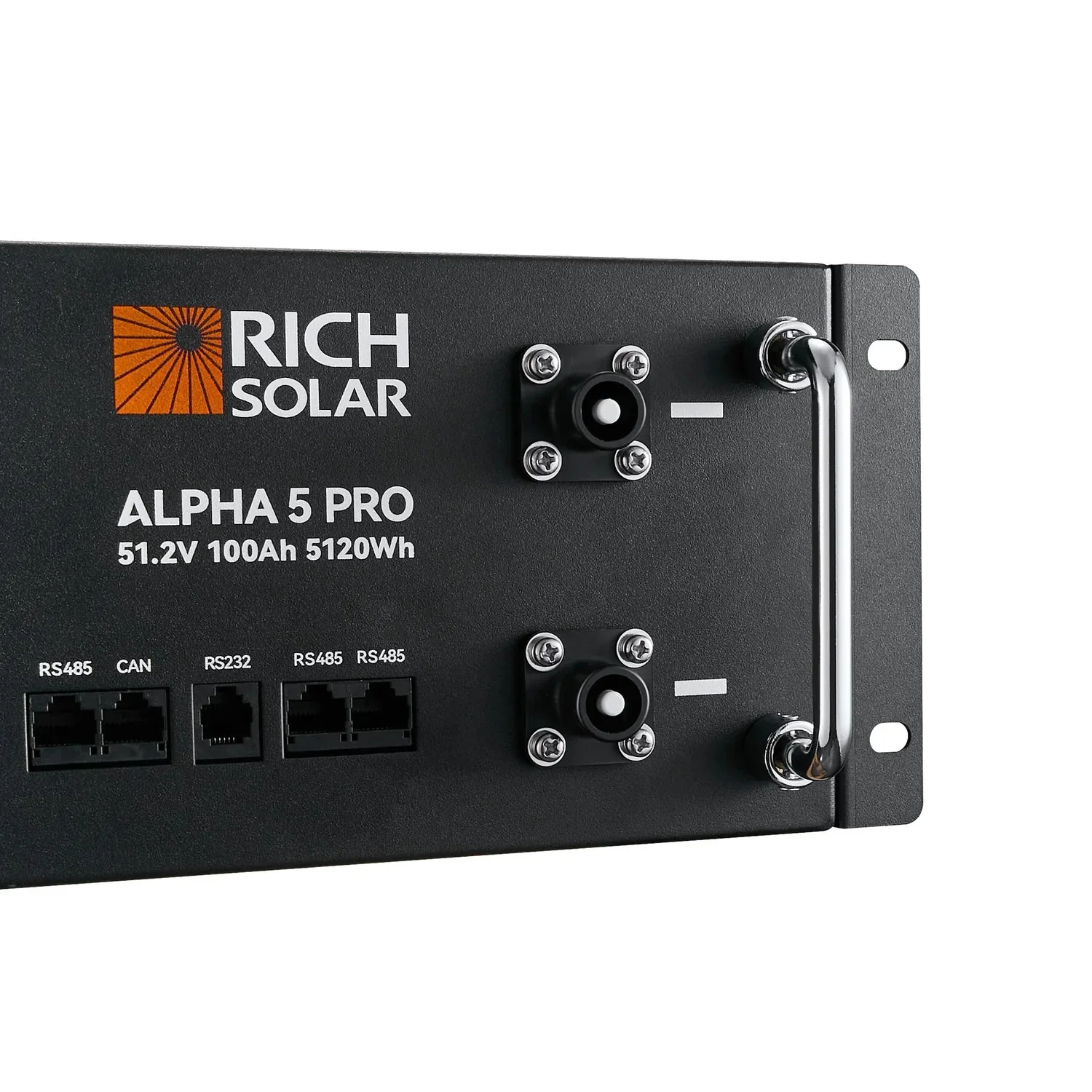

- Inverter communication: CAN, RS485, RS232 and dry contact.
- Easy monitoring: touchscreen, Wi-Fi, Bluetooth.

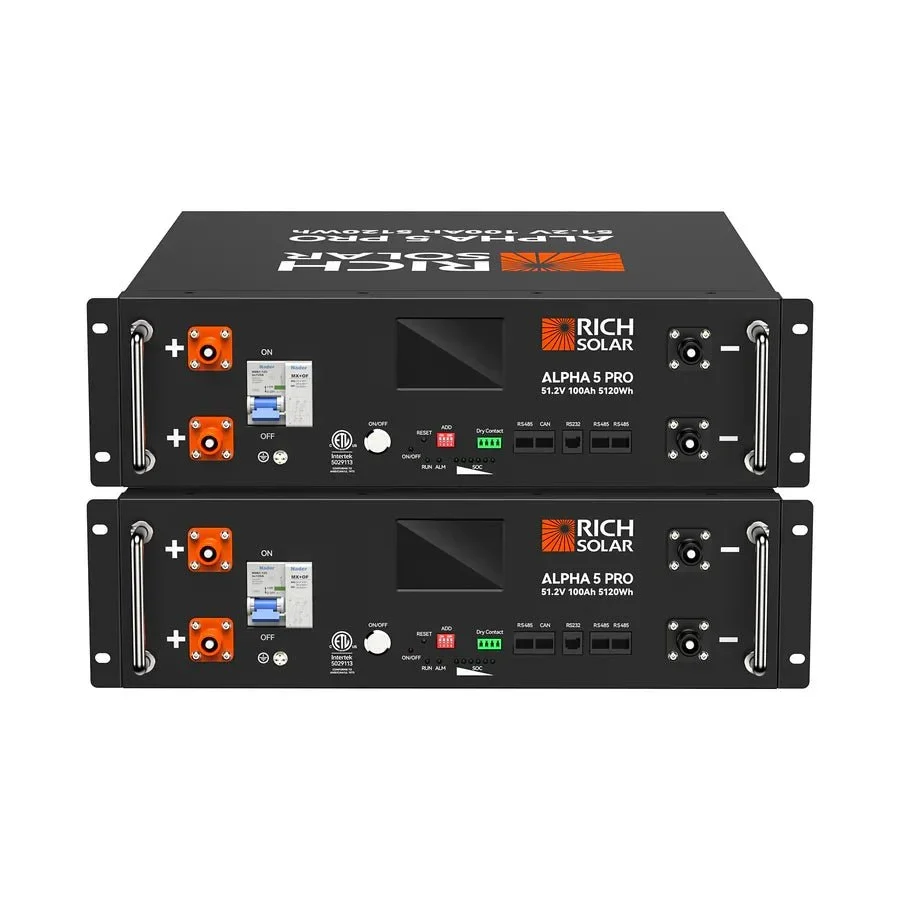

- Scales big: up to 30 in parallel (153.6kWh).
- Certified: UL 1973 and UL 9540A.
Specifications
| Voltage | 51.2V |
|---|---|
| Capacity | 100Ah / 5,120Wh |
| Chemistry | LiFePO4, Grade A cells |
| Cycle life | 7,000+ |
| Max charge / discharge | 100A / 100A |
| Parallel | Up to 30 (153.6kWh) |
| Communication | CAN, RS485, RS232, dry contact |
| Monitoring | LCD touchscreen, Wi-Fi, Bluetooth |
| Internal heating | Yes |
| Form factor | 3U rack mount, metal housing |
| IP rating | IP21 (indoor) |
| Certifications | UL 1973, UL 9540A, FCC, UN 38.3 |
| Dimensions | 17.7 x 17.8 x 5.2 in |
| Weight | 100.9 lb (manufacturer figure) |
FAQ
Will it work with my inverter?
It communicates over CAN, RS485 and RS232 with many major inverter brands. Tell us your inverter model and we’ll confirm.
Can it go outdoors?
No. It’s rated IP21, so install it indoors, ideally in a server rack or battery cabinet.
Warranty
Manufacturer’s warranty: 10 years. Original purchaser only. Source: Rich Solar warranty.
Defective on arrival or within 30 days? You can also return it to us under our Returns & Refunds Policy. See how warranty claims work.
